LiftMaster Beeping? How to Replace the Backup Battery

Why is my LiftMaster beeping?

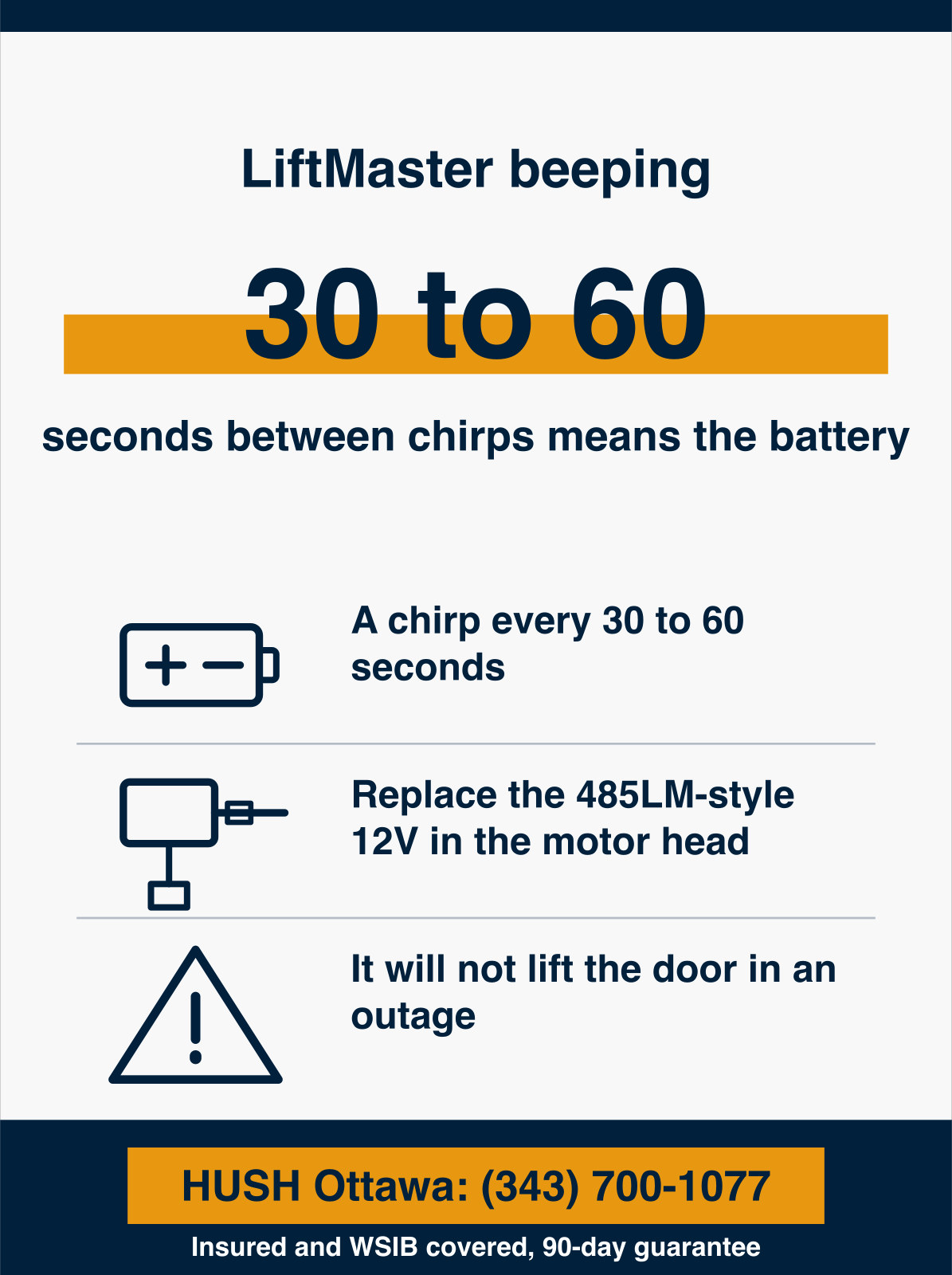

A LiftMaster that beeps or chirps every 30 to 60 seconds is reporting a dead or dying battery-backup battery, not a broken opener. The motor still runs on house power, but the backup cell that lifts the door during an outage has lost its charge and needs replacing.

LiftMaster added battery backup so the door still opens when the power is out, which matters during an Ottawa ice storm or summer thunderstorm outage. The opener watches the battery’s health and chirps when it can no longer hold a charge. The chirp is deliberate and repeating so you do not miss it. You may also see a red battery LED on the motor head or the wall control. None of this means the opener itself has failed. For a wider view of opener warning lights and codes, see what an opener blink code means.

Which battery does my LiftMaster use?

Most battery-backup LiftMaster openers use a 12V sealed lead-acid battery, sold by LiftMaster as the 485LM, or an equivalent 12V 4 to 5Ah pack. Confirm the exact battery against your model number before you buy, because a few newer units use a different cell.

The 485LM is a sealed lead-acid brick about the size of a small cordless-drill battery, with a red and a black lead and a keyed plug. It snaps into a compartment in the motor head. The table below covers the common LiftMaster battery-backup families and what each one takes.

If your motor head has no battery door at all, your model may not have backup battery support, and the chirp could instead be a different fault. In that case, read LiftMaster blink codes decoded to match the warning pattern to a cause.

How to replace the backup battery

Replacing a LiftMaster backup battery is a 10-minute job with one screwdriver. Unplug the opener, open the battery door on the motor head, unplug the dead 485LM, drop in the matching 12V battery red to red and black to black, then plug the opener back in and let it charge.

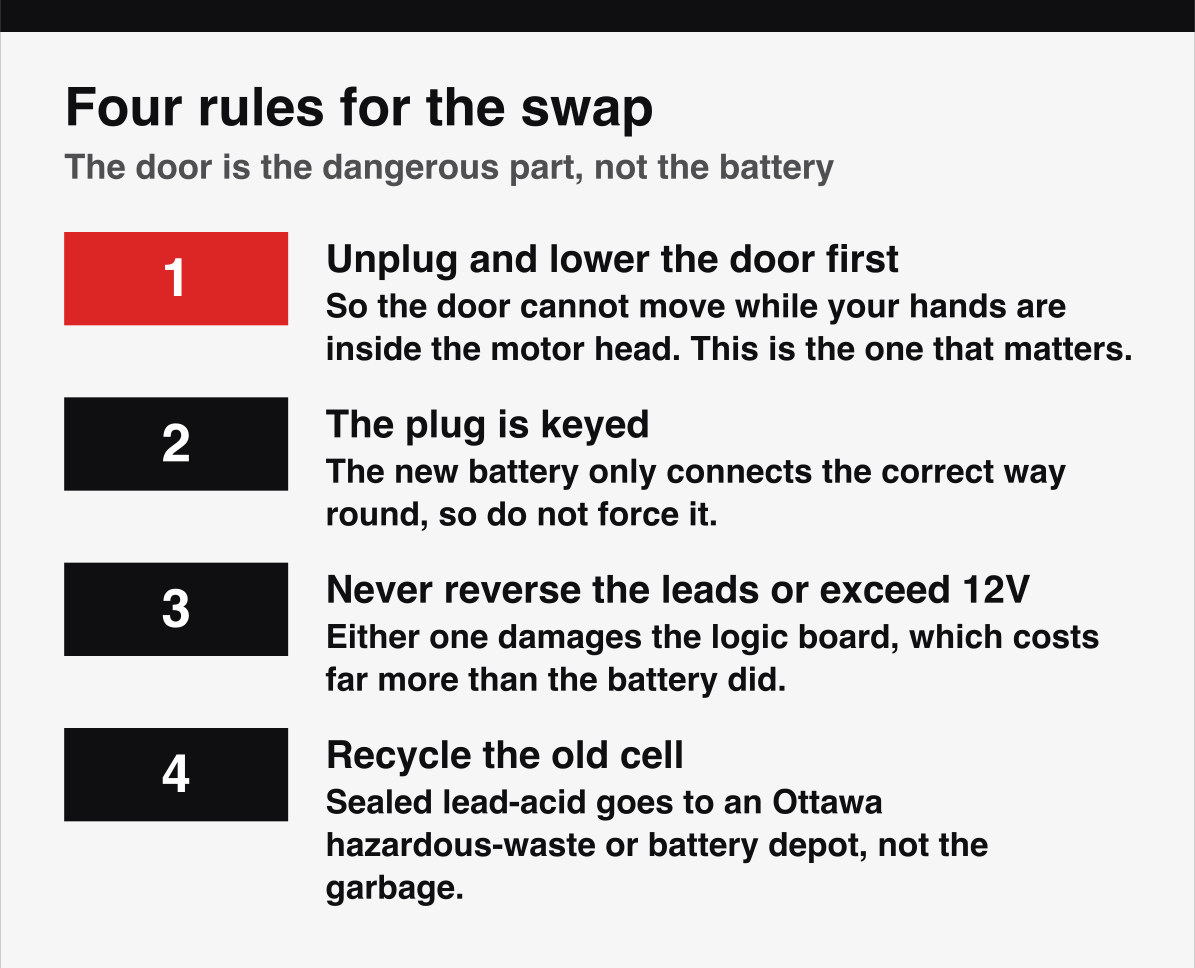

Follow the numbered steps at the top of this page in order. The key safety point is simple: unplug the opener and lower the door first, so the door cannot move while your hands are inside the motor head. The plug is keyed, so the new battery only connects the correct way. Never connect the leads backwards or use a battery rated above 12V, because that can damage the logic board. Dispose of the old sealed lead-acid battery at an Ottawa hazardous-waste or battery-recycling depot, not in the garbage.

How to stop the low-battery beeping

To stop the beeping for good, replace the dead backup battery, because the chirp is a low-battery alert and not a setting you can simply turn off. Once the opener charges a healthy 485LM battery, the chirp stops on its own, usually within a few minutes of reconnecting power.

If you need a few quiet minutes before you can get a replacement battery, you can often silence the alert temporarily. On many LiftMaster units, holding the LOCK button on the wall control, or pressing and holding the learn button on the motor head, mutes the chirp until the next cycle. Unplugging the opener also stops the noise, but then the door will not open on power at all. None of these are real fixes. The chirp comes back until a fresh battery is installed, so treat the mute as a pause, not a solution.

How long do backup batteries last?

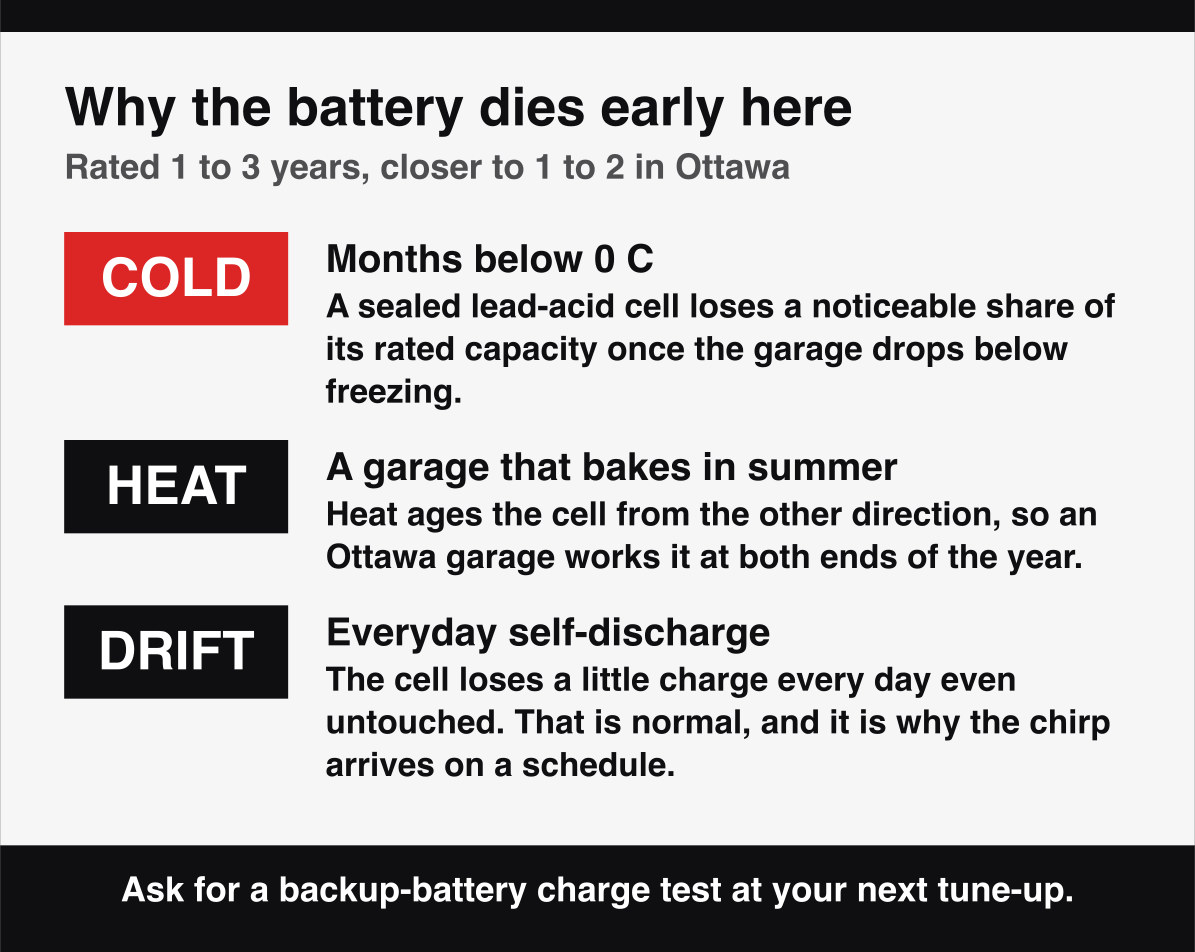

A LiftMaster backup battery typically lasts about 1 to 3 years before it can no longer hold a charge. In cold Ottawa garages, where winter air sits well below 0C, sealed lead-acid batteries lose capacity faster, so many homeowners here replace theirs closer to the one to two year mark.

Cold is the main reason batteries fail early in this climate. A sealed lead-acid cell loses a noticeable share of its rated capacity once the garage drops below freezing, and an unheated Ottawa garage spends months under 0C. Heat shortens battery life too, so a summer garage that bakes in the sun ages the cell from the other direction. The battery also self-discharges a little every day, which is normal. If your opener is on a regular garage door tune-up schedule, ask the technician to test the backup battery’s charge so a weak cell gets caught before it strands you during an outage.

Battery replaced but still beeping?

If you installed a fresh 485LM battery and the LiftMaster still beeps or shows a red light, the problem is no longer the battery itself. The likely culprits are a loose or reversed connector, a battery that has not finished charging, or a charging circuit on the logic board that has failed.

First, give a brand-new battery up to 24 hours to reach full charge, because the opener may keep flagging a low pack until it is topped up. Recheck that the red and black leads are fully seated on matching terminals and that the plug clicked home. If the chirp or red LED persists after a full day of charging on a confirmed-good battery, the battery-charging circuit on the control board is usually at fault, and that needs a technician rather than another battery.
