LiftMaster Blink Codes: What the Flashes Mean
By Omar, Factory-Trained Technician· Updated 2026-03-12

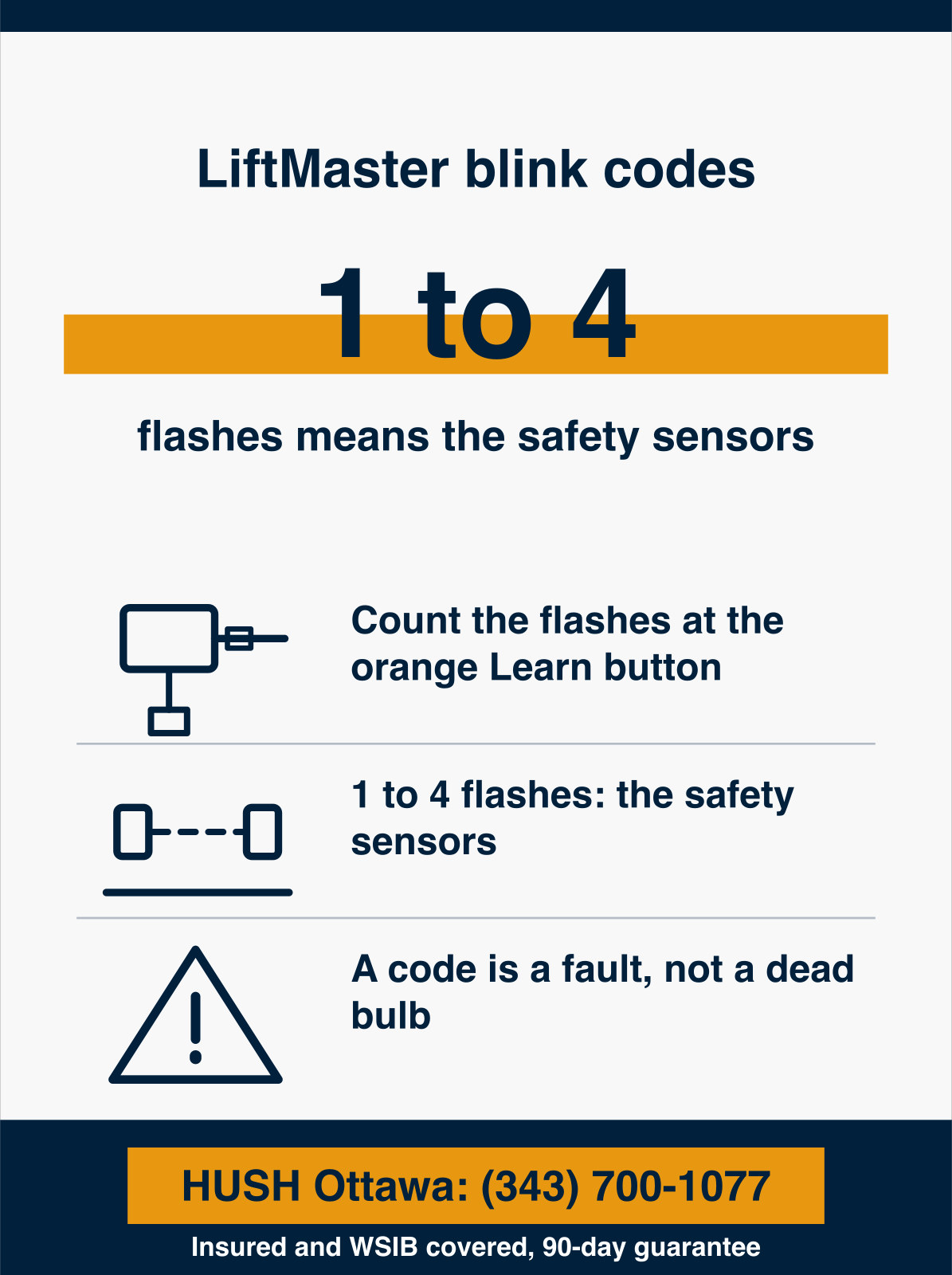

A blinking LiftMaster is reporting a fault code, not a dead bulb. Count the flashes near the orange Learn button on the motor head, then match the number below. Most codes, 1 to 4 flashes, mean the safety sensors are blocked or misaligned.
Why is my LiftMaster blinking?
A blinking LiftMaster is showing a diagnostic fault code, not a burned-out work light. The motor head flashes a set number of times, pauses, then repeats. That repeating count is the code, and on most LiftMaster openers the most common code is a blocked or misaligned safety sensor.
LiftMaster, Chamberlain, and Craftsman all share the same Security+ 2.0 platform, so their blink codes line up. The opener flashes to report exactly what it cannot do, whether that is a beam it cannot see through, a wire it cannot read, or a motor speed it cannot track. Sensors trigger far more codes than logic boards do, so always start at the floor. For a side-by-side view of every brand, see our guide to all opener brand blink codes decoded.
How to read the blink code on a LiftMaster
Read a LiftMaster blink code by pressing the wall button and watching the small LED next to the orange Learn button on the motor head. It flashes a count, pauses, then repeats. Note the number before you touch anything, because that number tells you exactly where to start.
The six steps at the top of this page walk you through it. The short version: count the flashes, check the safety sensors first, inspect the sensor wiring for a low count, and power-cycle for a 10 blink surge code. A lighted multi-function wall control mirrors the same code, so you can read it from inside the garage without standing under the motor. Match your count to the chart below.

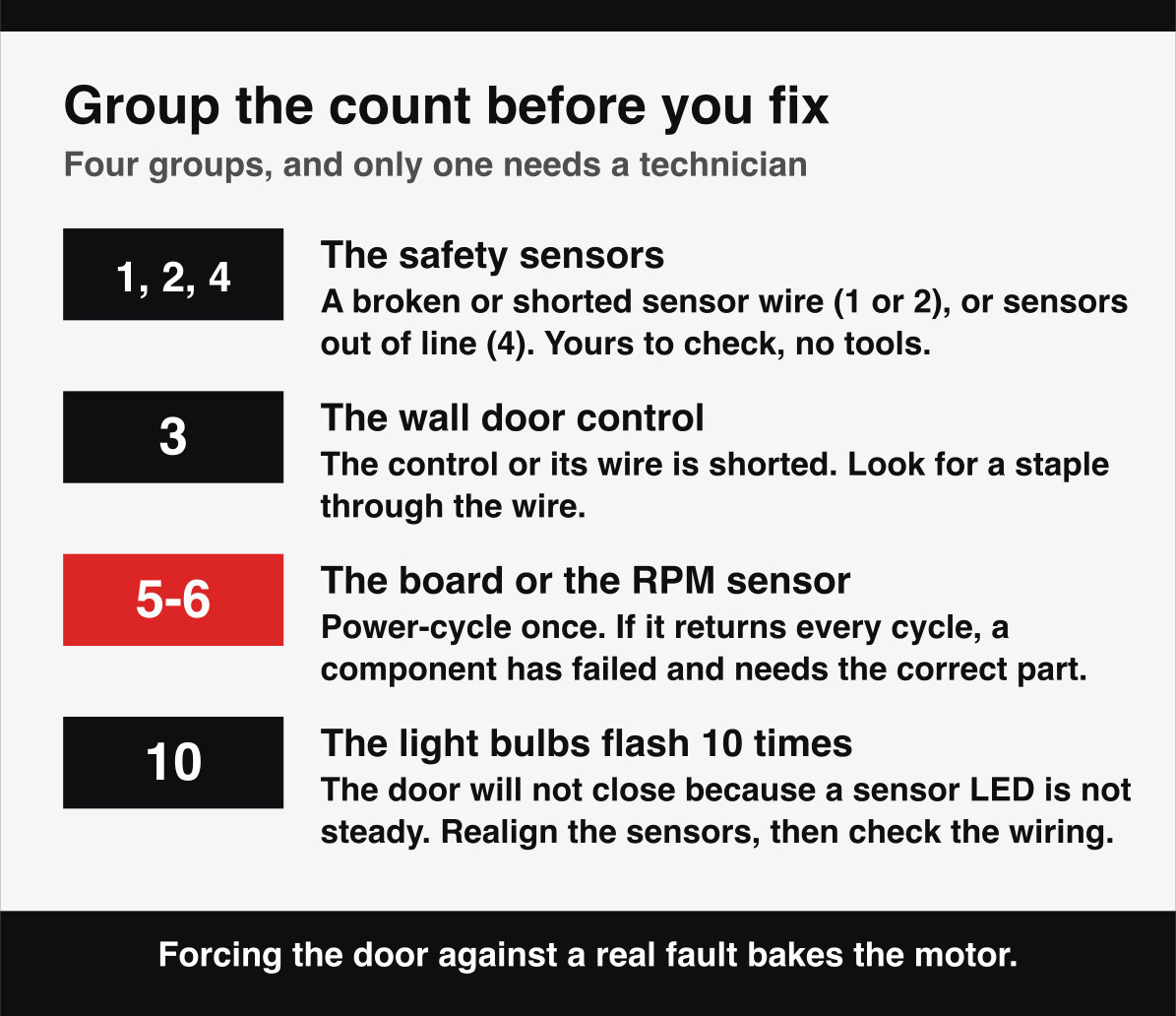

What does each LiftMaster blink code mean?
The table below covers the LiftMaster blink codes Ottawa homeowners hit most. Counts can vary slightly by model year, so treat the ranges as a starting point and confirm with your manual if the count is unusual.
| Blinks | What it means | First thing to try |
|---|---|---|
| 1 to 2 | Safety sensor wiring shorted or a wire pinched | Inspect both sensor wires for staples, breaks, or crush points |
| 3 to 4 | Safety sensors blocked or out of alignment | Clear the beam path, realign until both LEDs glow steady |
| 5 to 6 | Logic board or RPM/motor-sensing fault | Power-cycle once, then call for board service |
| 10 | Power or surge fault | Unplug 30 seconds, reset the GFCI outlet, plug back in |
1 to 4 blinks: safety sensors
One to four blinks on a LiftMaster is a safety-sensor problem. A low count of one to two usually means a wiring short or a pinched wire, while three to four blinks means the photo-eyes are blocked, dirty, or out of alignment. This is the easiest LiftMaster code to clear yourself.
Each sensor sits near the floor on a bracket. When the pair is aligned and the path is clear, one glows steady amber and the other steady green. If a light is off, dim, or flickering, the beam is broken. Clear boxes, garbage bins, cobwebs, or drifted snow from the beam path, then wipe both lenses with a dry cloth. For a one or two blink count, follow each wire up to the motor head and look for a staple through the insulation or a wire crushed behind a shelf. Loose wing nuts let a bracket droop over months, so nudge each sensor until both LEDs hold steady. This is the exact pattern behind a blinking opener that will not close the door, because the safety system refuses to lower a door it cannot see under. If realignment never holds, a sensor head or its wiring may be failing, which is a garage door safety sensor repair.
5 to 6 blinks: logic board / RPM sensor
Five to six blinks points at the logic board or the RPM sensor that tracks motor speed. The opener has lost confidence in how far or how fast the motor is turning, so it stops and flashes rather than risk crushing something in the door’s path.
Try one power cycle first, because a brief electrical glitch can throw this code a single time. Unplug the opener for 30 seconds, then plug it back in. If five or six blinks come back every cycle, the control board or the motor’s RPM sensor is failing and needs a technician with the correct LiftMaster replacement part. This is not a wipe-the-lenses fix, and repeatedly forcing the door against this code can burn out the motor. A failed board on an aging unit is often the moment a fresh LiftMaster opener repair makes more sense than chasing parts.
10 blinks: power surge after an Ottawa storm
Ten blinks is a power or surge fault, common after an Ottawa thunderstorm or an ice-storm outage. The opener saw a voltage spike or a brownout and locked itself out to protect the logic board. It is the opener saving itself, not a mechanical failure.
Unplug the LiftMaster for a full 30 seconds, reset any tripped GFCI outlet on that circuit, then plug it back in. That clears most surge faults. If the door now over-travels or stops short of the floor, the saved travel limits were wiped and need relearning per your manual. Outages are also when an aging board finally quits, so if 10 blinks will not clear after a power cycle, the surge likely damaged the control board. At that point it becomes a garage door opener and sensor repair rather than a reset you can do yourself.

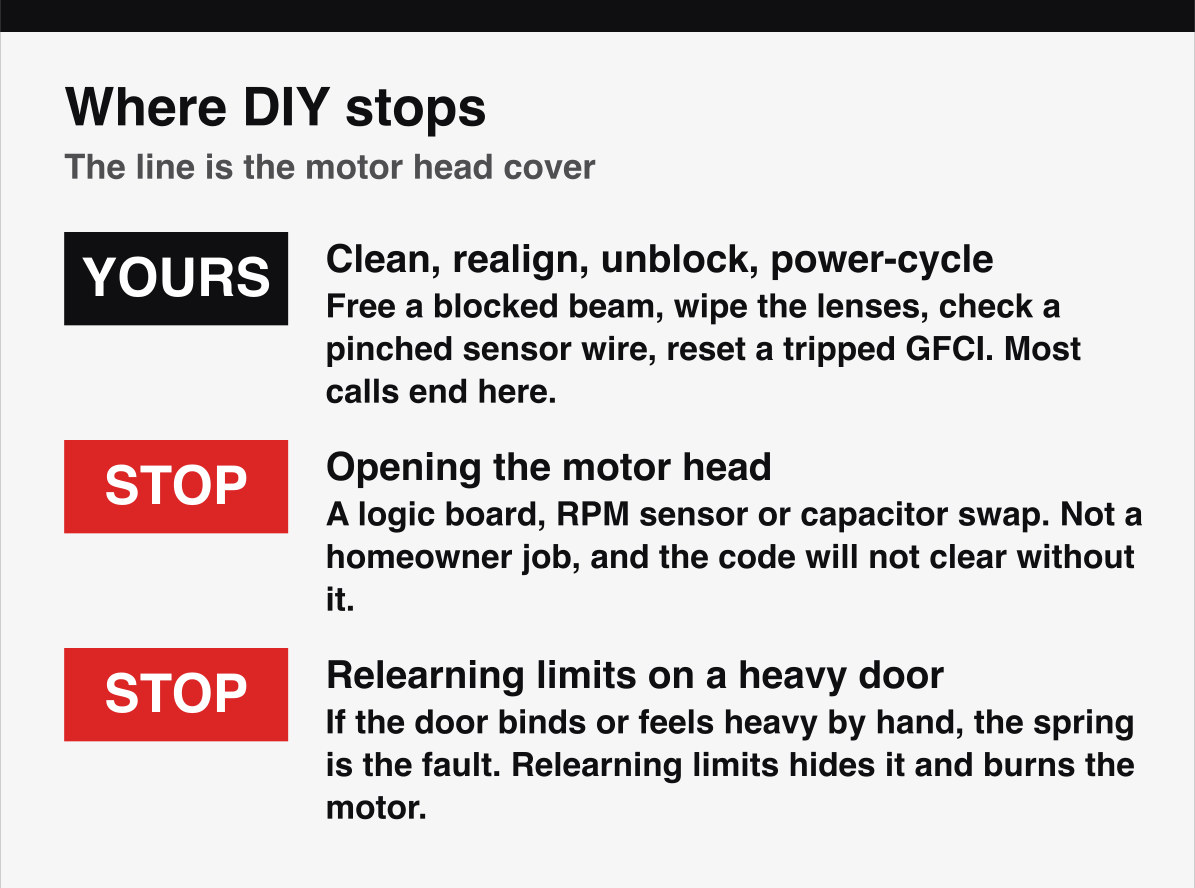

Which LiftMaster codes can I clear myself?
You can safely clear the easy ones: clean and realign the safety sensors, free a blocked beam, inspect a pinched sensor wire, reset a tripped GFCI, and power-cycle after an outage. Those fixes resolve the large majority of LiftMaster blink-code calls with no tools and no open motor head.
What you should not attempt is opening the motor head to swap a logic board, RPM sensor, or capacitor, or relearning force and travel limits on a door that already feels heavy or binds by hand. A blink code that returns after you have cleaned the sensors and power-cycled is telling you a component has failed. Forcing repeated cycles against a real fault bakes the motor and turns a parts repair into a full opener replacement. If you are unsure whether the count points at the sensors or the board, our full garage door troubleshooting guide walks the whole decision tree.
How much does a LiftMaster blink-code fix cost in Ottawa?
Most LiftMaster blink-code fixes are inexpensive. A diagnostic service call runs $35 to $85, and it is free when it leads to a repair over $250. Sensor and wiring repairs and board-level opener repair start from $150. There are never overtime fees for evenings or weekends.
If the fault is a misaligned or failed safety sensor, the repair sits on the lower end and is often same-day. A failed logic board, RPM sensor, or surge-damaged control board lands in the opener-repair range from $150, parts depending on model. We carry common LiftMaster parts on the truck. If a 1990s LiftMaster keeps throwing board codes, a fresh opener install from $220 is usually the smarter spend than chasing an obsolete board.
When to call a factory-trained technician
Call a factory-trained technician when the LiftMaster blink code returns after you have cleaned the sensors, inspected the wiring, reset the power, and confirmed the beam path is clear. A repeating five, six, or ten blink count points at the logic board, RPM sensor, or surge damage, which need diagnosis and the correct replacement part.
HUSH Garage Door Service reads LiftMaster blink codes and motor-head LEDs daily, and we come to you across Ottawa and Gatineau. Owner Omar is a factory-trained technician, and every repair is backed by our 90-day Done-Right Guarantee. If the opener strains, reverses every cycle, or simply will not respond, do not keep pressing the button, because that bakes the motor. Book LiftMaster opener repair in Ottawa or same-day garage door opener repair, and call HUSH at (613) 255-1968. Tell us the number of blinks and we will decode it for you before a technician arrives.
