Garage Door Track Types and Repair
By HUSH Garage Door Service· Published
Garage door tracks are the steel rails that guide the rollers. The 4 common types are standard lift, high lift, low headroom and vertical lift, chosen by ceiling height. Most bent tracks are realigned rather than replaced.

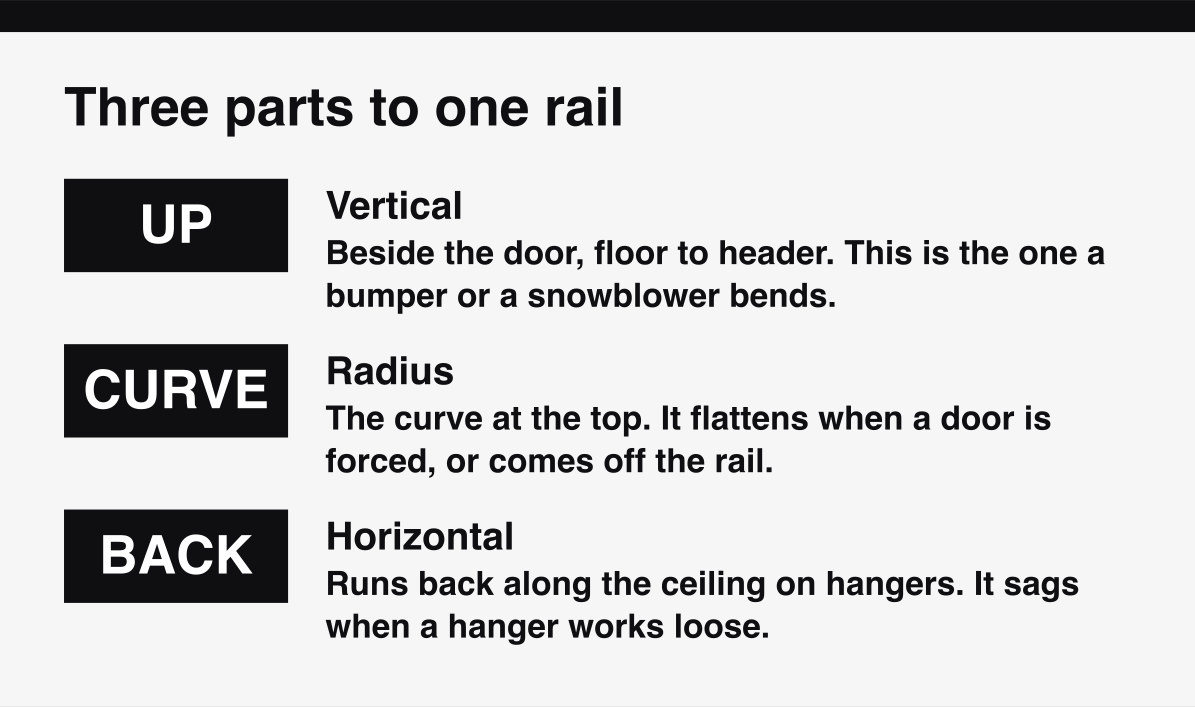

What are the parts of a garage door track?
A garage door track is two steel rails, one each side. Each rail has three parts. A vertical section beside the door, a curved radius at the top, and a horizontal section running back along the ceiling. The rollers ride inside these rails, and the whole assembly is held by a flag bracket at the corner and hangers bolted to the ceiling.
Each part has a job, so a problem usually traces to one of them.
Among the types of doors in a house, only the overhead garage door rides steel tracks up to the ceiling; a sliding track for a barn or closet door is a single top rail the door hangs from and slides along sideways.
| Track part | Where it is | Common damage |
|---|---|---|
| Vertical | Beside the door, floor to header | Bent by a bumper or a snowblower |
| Radius | The curve at the top | Flattened by a forced or off-track door |
| Horizontal | Back along the ceiling | Sags when a ceiling hanger works loose |

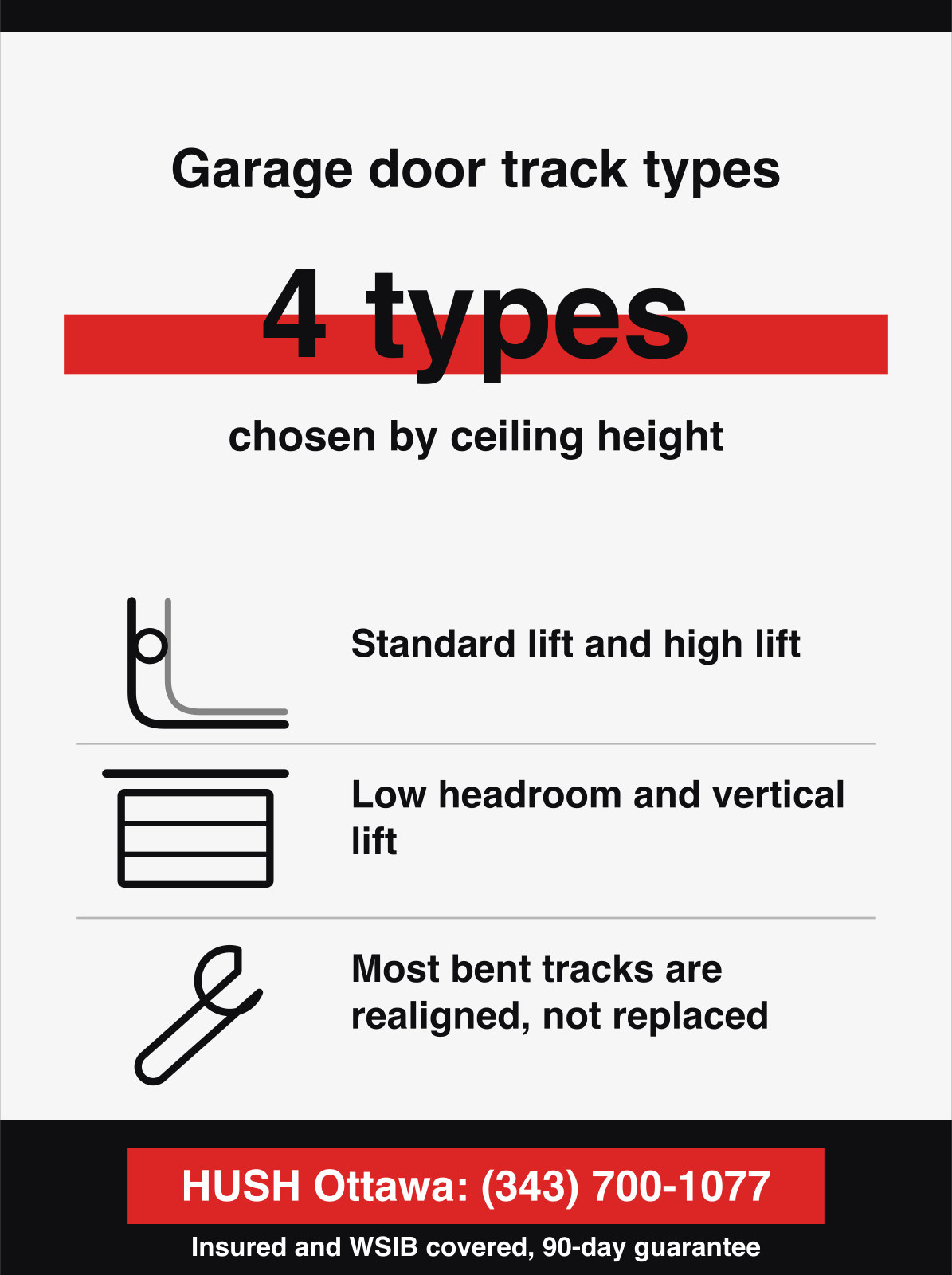

What are the different types of garage door tracks?
Track type is chosen by how much room there is above the door, called headroom. The four you will meet on Ottawa homes and garages are standard lift, high lift, low headroom and vertical lift.
Standard lift and high lift
Standard lift is the common residential setup: the door rises a short way then curves back flat under the ceiling, and it suits a normal garage with about a foot of headroom. High lift raises the door more vertically before it turns back, used in garages with tall ceilings or a car lift, and it needs longer cables and often a different spring setup.
Low headroom and vertical lift
Low headroom tracks use a double track and a second set of rollers to let the door fold back tight against the ceiling when there is very little room above the opening. Vertical lift, where the door rises straight up with no horizontal turn, is a commercial setup for buildings with very high ceilings. The wrong track for the headroom is a common cause of a door that binds at the top.

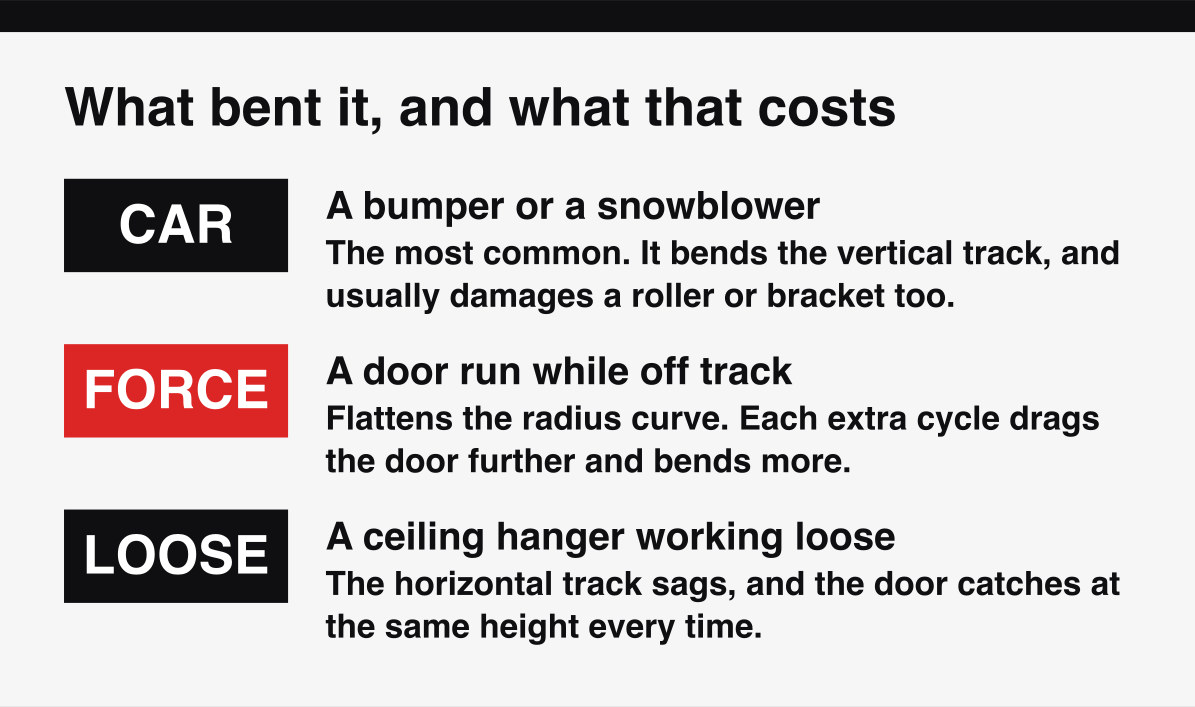

Why does a garage door track bend or come loose?
Tracks bend when something pushes on them: a vehicle bumper, a forced door, or the sudden pull of a snapped cable yanking the door out of line. They come loose when the lag bolts and brackets holding them work free from years of vibration.
A door that has been operated with a broken spring is a frequent cause, because the opener drags the full weight up crooked and twists a track. Rust is the slower enemy, especially on the bottom of a vertical track where road salt and meltwater collect through an Ottawa winter. Once a track is out of line, the rollers run rough and the door starts to catch.
Can a bent garage door track be repaired, or does it need replacing?
A damaged garage door track is repaired or replaced according to the damage. A minor bend, a flared lip, or a track that has simply drifted out of alignment can usually be straightened and squared back up. A track with a sharp kink, a crushed section, or heavy rust through the steel is replaced.
Because tracks come in sections, replacing is often cheaper than it sounds, only the damaged piece needs swapping rather than the whole rail. The exception is when a bent track has already let the door jump off, which becomes an off-track garage door repair and should be looked at before the door is used again.
How is a misaligned garage door track fixed?
A technician loosens the track brackets and re-squares the track, plumb against the door and the right distance from the rollers. Then everything is re-torqued, and the gap checked along the full travel. The door is cycled and balanced to confirm the rollers run smoothly without binding or rubbing.
Alignment is precise work: too tight and the rollers bind, too loose and the door rattles or jumps the rail. A balance test afterward confirms the door is not fighting the track. Once a door is off its rails, leave it to a technician. The door is heavy and still under spring tension while anyone works near it.
When a track problem is really an off-track door
If the rollers have already left the track, the door is leaning, or one side has dropped, you are past a simple alignment and into an off-track door. At that point the door can fall or jam, so do not try to force it back on or keep operating the opener.
Unplug the opener, leave the door where it is, keep people and cars clear, and call us. Do not pull the red release cord on an off-track door, because it can let the weight drop. We reset the door, find what threw it off, a bent track, a broken cable, or a worn roller, and fix the cause so it does not happen again. See same-day derailed door service for what that visit involves.
