Garage Door Maintenance: How It Works and How to Keep It Working

What does garage door maintenance involve?

Garage door maintenance involves four simple jobs: lubricate the moving parts, test that the door is balanced, keep the sensors and tracks clean, and have a technician inspect and adjust the high-tension spring and cable system once a year. Most of it takes minutes; the parts that take training are the ones under dangerous tension.

A modern sectional garage door is the largest and heaviest moving object in your home, often weighing 130 to 350 pounds and cycling up and down thousands of times a year. The good news is that the routine care is easy and cheap. The catch is knowing which tasks are safe DIY and which belong to a factory-trained technician, because the torsion spring and lifting cables are wound to forces that can break bones. This guide explains how the door works, what each part does, and exactly what to do, and what to leave alone.

If you would rather skip the DIY entirely, you can book a professional garage door tune-up and safety inspection and we will come to you. Same-day service is available 7 days a week, and our service call is $35 to $85, free with any repair over $250.

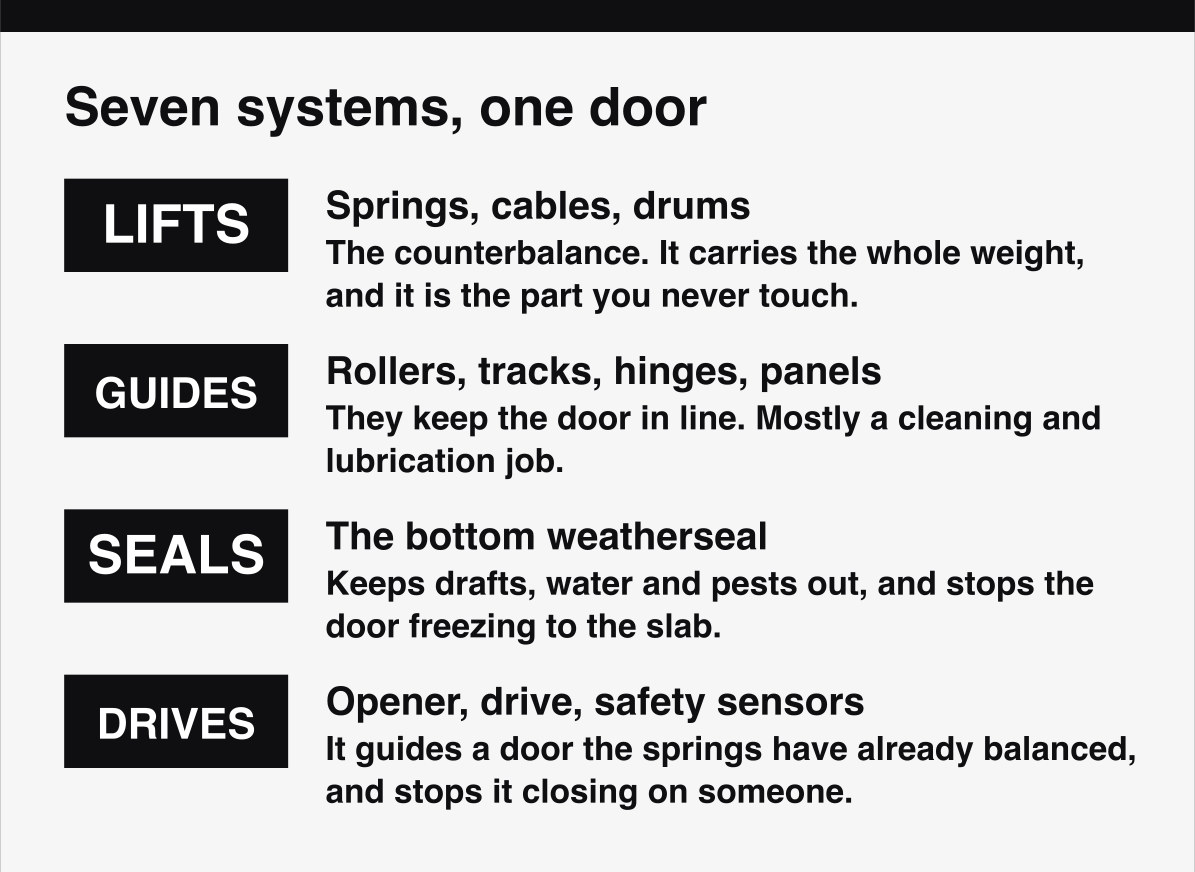

How does a garage door work? The 7 systems explained

A garage door works as a counterbalanced system. The heavy door rides on rollers in tracks, and a tightly wound spring stores energy that offsets almost all of the door’s weight, so the opener, or your arm, only has to move the small remaining difference. Seven systems work together to make that happen.

Think of the door as a balanced see-saw. When everything is tuned, the door is nearly weightless to lift by hand and the small motor barely strains. When one system drifts out of adjustment, the others take the extra load and wear out faster. The seven systems are: the counterbalance springs, the lifting cables and drums, the rollers and tracks, the hinges and panels, the bottom weatherseal, the opener and drive, and the photo-eye safety sensors. The sections below walk through each one, and you can read more about how a garage door spring system works (torsion vs extension) for the part that does the heaviest lifting.

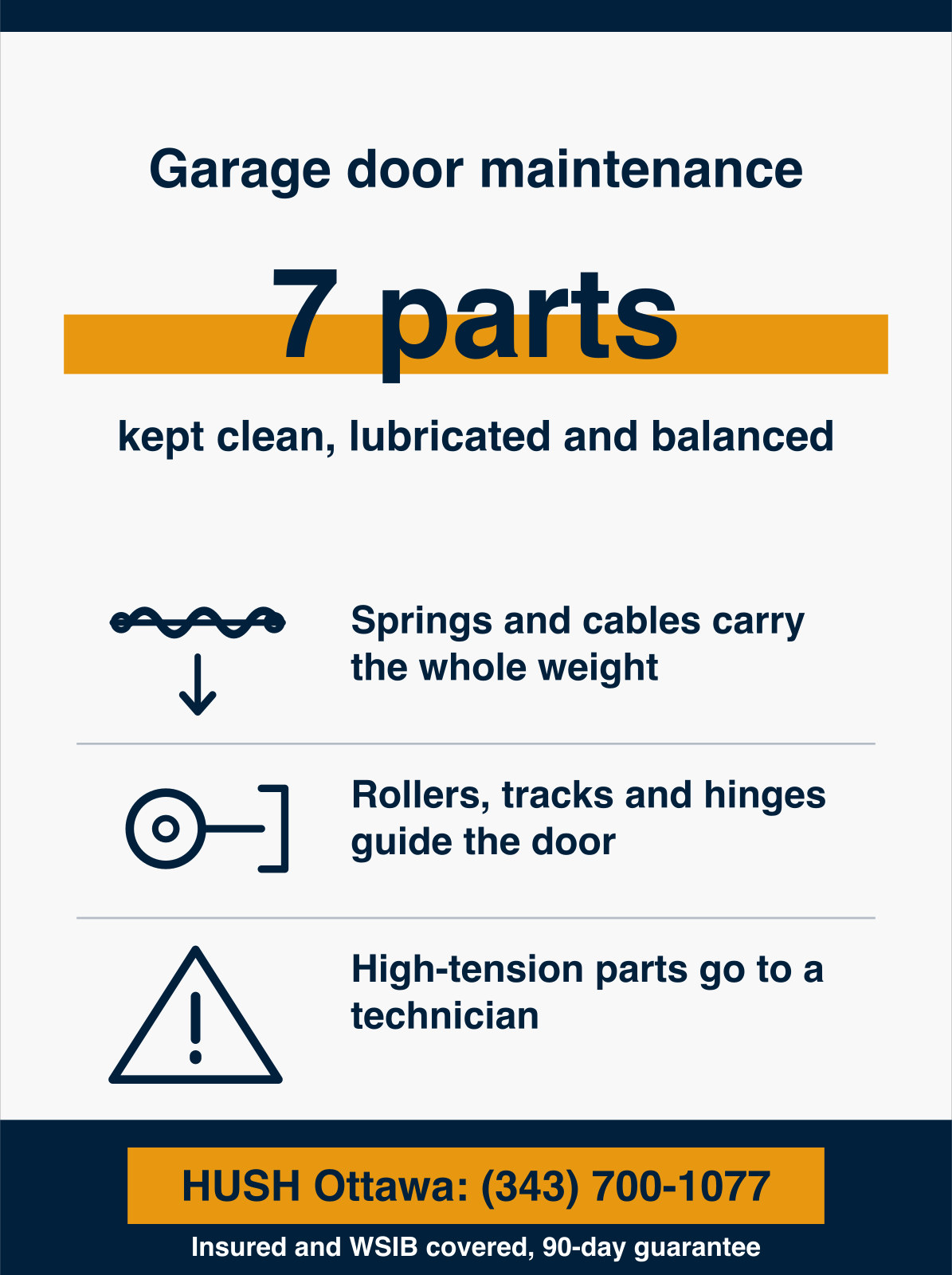

What are the main parts of a garage door?

The main parts are the spring counterbalance, the cables and drums, the rollers, the tracks, the hinges, the panels, the bottom seal, the opener motor and drive, and the safety sensors. The spring carries the weight, the cables and drums transfer that lift to the door, and the opener only supplies the final nudge.

Here is the full parts list, grouped by job, so you can picture a garage door components diagram in your head:

• Counterbalance: the torsion spring above the door or a pair of extension springs along the tracks.
• Lift system: steel lifting cables, cable drums at the top corners, and the torsion shaft.
• Travel system: nylon or steel rollers, the vertical and horizontal tracks, and the track brackets.
• Body: the hinged steel or wood panels, the hinges between them, and the end and centre stiles.
• Seals: the bottom weatherseal and the perimeter weatherstripping.
• Power: the opener motor, the rail, and the belt, chain, or screw drive.
• Safety: the photo-eye sensors near the floor and the auto-reverse force settings.

The torsion or extension spring (the counterbalance)

The spring is the part that actually lifts the door. A torsion spring mounts on a shaft above the opening and winds tight to store energy; a pair of extension springs stretch along the horizontal tracks instead. Either way, the spring offsets the door’s weight so the opener does almost no lifting.

Springs are the single most important, and most dangerous, part of the door. They are rated by cycle life, typically 10,000 cycles for a standard spring, which is roughly seven years of average use, while a 25,000-cycle spring lasts far longer. Because they store enormous energy, you should never try to adjust or replace one yourself; that work needs winding bars and training. When a spring snaps you usually hear a loud bang and the door becomes too heavy to lift, which calls for professional garage door spring repair in Ottawa. A single spring starts at $200 and a matched pair from $300. Learn the differences in torsion vs extension springs and how the count adds up in how many open and close cycles a garage door lasts.

The opener, drive and safety sensors

The opener is the electric motor that pushes and pulls the door along a rail, using a belt, chain, or screw drive. Brands like LiftMaster, Chamberlain, and Genie add a logic board, remotes, a wall button, and myQ smart control. Near the floor, two photo-eye sensors form the safety system.

The opener does not carry the door’s weight; the spring does. The motor only supplies the small force needed to start and stop travel, which is why a balanced door is so important for opener life. The two photo-eye safety sensors sit about six inches off the floor and shoot an invisible beam across the opening. If anything breaks that beam, or the door meets resistance, the auto-reverse force setting sends the door back up. Keeping the lenses clean and aligned is a core DIY task. When the motor grinds, the gear strips, or the logic board fails, that is garage door opener repair and replacement territory; opener repair starts from $150 and a new opener install from $220.

Cables, drums, rollers and tracks

The lifting cables wrap around grooved cable drums at the top corners and translate the spring’s energy into lift. The door then rides up and down on rollers that run inside steel tracks. Rollers come in noisy steel or quiet, longer-lasting nylon, and both wear over years of cycling.

Cables are under the same high tension as the spring, so a frayed or snapped cable is a job for a technician, not a homeowner. Tracks and rollers, on the other hand, are mostly a cleaning and lubrication task. Wipe grit out of the tracks, never grease the track channel itself, and put a drop of lubricant on each roller stem. Worn or flat-spotted rollers make the door noisy and jerky and are inexpensive to replace, a roller set runs $100 to $200. If a roller jumps the track or a cable comes off the drum, stop using the door, since forcing it bends panels and brackets.

Hinges, weatherseal and the door panels

The hinges connect the panels and let the door bend over the curved track. The bottom weatherseal is the rubber strip that meets the concrete and keeps out water, wind, and pests. The panels themselves, steel, wood, or composite from brands like Garaga, Clopay, Wayne Dalton, and Steel-Craft, form the visible door.

Hinges should be lubricated at their pivot points a few times a year and checked for cracks, especially the numbered hinges that take the most stress. The bottom seal hardens and cracks with age and Ottawa cold, which is when meltwater sneaks under and refreezes, so wipe it clean and treat it with silicone. Panels need little beyond a wash, but a dented or rusted section can be swapped without replacing the whole door. Tighten loose hinge and bracket bolts gently; do not over-torque them into the thin steel.

How often should you maintain a garage door?

Lubricate the moving parts and run a balance test every three to six months, clean the sensors and tracks at the same time, and book a professional tune-up once a year. In Ottawa, time the big seasonal check for late fall, because cold is when marginal springs and stiff seals finally fail.

A simple rhythm keeps the door healthy: a quick five-minute lubrication and balance test each season, plus one yearly professional inspection. High-use doors, the ones a busy family opens eight or ten times a day, should be checked more often because they burn through their spring cycles faster. For an exact, month-by-month plan, follow a season-by-season garage door maintenance schedule. The takeaway: maintenance is measured in minutes a year, while a neglected spring or opener can cost a weekend morning and a repair bill.

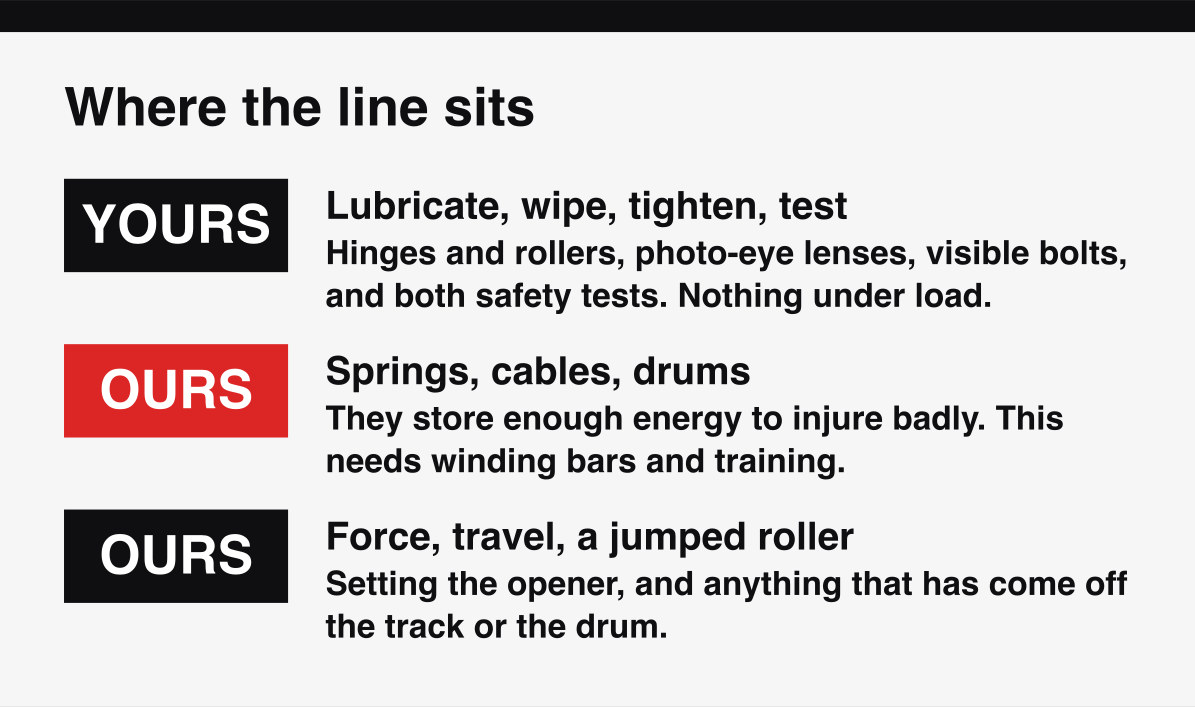

What can you safely do yourself vs. what needs a technician?

You can safely lubricate parts, clean sensors and tracks, test the balance and the auto-reverse, and tighten loose bolts. You should never touch the torsion spring, the lifting cables, or a door that is off its track, because those parts hold enough stored energy to cause serious injury.

The dividing line is tension. Anything that is wound, stretched, or holding the door’s weight is off-limits without the right tools and training. Everything else is fair game and genuinely useful.

DIY-safe maintenance tasks

These are the jobs any homeowner can do in well under an hour, a few times a year:

• Lubricate the springs, hinges, rollers, and opener rail with white lithium or silicone garage door lubricant. Read how to lubricate a garage door the right way, and skip 3 in 1 or WD-40 style oils, which attract grit and dry out fast.
• Run a balance test: pull the manual release, lift the door halfway, and let go. A balanced door holds in place. If it drops or flies up, the spring needs a pro. Here is the garage door balance test you can do in two minutes.
• Clean and align the photo-eye sensors so the lenses are clear and the lights are steady.
• Wipe out the tracks with a cloth, and clean and treat the bottom seal.
• Test the auto-reverse by laying a roll of paper towel under the door; it must reverse on contact.
• Tighten visibly loose hinge, roller-bracket, and track bolts, gently.

Tasks that need a trained technician (and why)

Leave these to a factory-trained technician with winding bars, clamps, and the right replacement parts:

• Spring adjustment or replacement. A torsion spring stores enough energy to break a hand or arm if it lets go. This is the number-one DIY injury on garage doors.
• Cable replacement. Cables carry the same tension as the spring and can whip when they fail.
• A door off its track, which is heavy, unstable, and easy to drop or worsen.
• Opener gear, board, or force adjustments beyond the basic remote and battery swaps.
• Track realignment and full tension balancing, which require releasing and re-setting the spring.

If a task involves the spring or cable, the safe move is a phone call, not a YouTube video. We carry springs, cables, rollers, and parts for every major brand on the truck, so most repairs are done in one visit.

Why does Ottawa’s climate make maintenance matter more?

Ottawa’s deep freeze, from minus 25 to minus 30 in a hard winter, makes maintenance critical because cold turns steel springs brittle, thickens the grease in every joint, hardens the bottom seal, and lets meltwater freeze the door to the slab. A door that coped all summer can fail on the first truly cold morning.

This is why the busiest repair season across Ottawa, Gatineau, and Aylmer is the dead of winter. A spring near the end of its cycle life almost always snaps on a freezing morning, not a mild one. Fresh, cold-rated lubrication keeps the door moving when the grease would otherwise stiffen, and a clean, dry threshold stops the seal from icing to the concrete. Doing the seasonal check in late fall, before the cold sets in, prevents the great majority of winter callouts. We provide garage door service across Ottawa and Gatineau, so help is never far when the temperature drops.

What does a professional garage door tune-up include?

A professional tune-up is a 20-plus-point service where a technician measures and adjusts spring tension, balances the door, lubricates every moving part, tightens all hardware, aligns the tracks and sensors, tests the auto-reverse safety, and inspects the cables, rollers, and opener for wear. It is the one job that covers the high-tension parts you should not.

A tune-up is the difference between hoping the door is fine and knowing it. The technician catches a fraying cable, a tired spring, or a drifting sensor before it strands your car in the garage. You can book a professional garage door tune-up and safety inspection any day of the week. We arrive with the parts to fix small issues on the spot, and you get our 90-day Done-Right Promise on the work, performed by a factory-trained technician.

How much does garage door maintenance cost in Ottawa?

DIY maintenance costs almost nothing, around $10 to $20 a year for a good lubricant. A professional tune-up is affordable preventive care, and our diagnostic service call is $35 to $85, free with any repair over $250. Spring repair starts at $200, a pair from $300, and opener repair from $150, with no overtime fees.

Maintenance is the cheapest insurance you can buy for a garage door. A few dollars of lubricant and an annual tune-up are a fraction of the cost of an emergency spring or cable repair, and far cheaper than the panel and opener damage that follows when a neglected door is forced. Owner Omar built HUSH on honest, no-pressure pricing, so a tune-up gets you a real inspection, not an upsell.

Explore the maintenance guides

Use these focused guides to go deeper on any part of the routine:

• How to lubricate a garage door the right way covers the correct products and every point to hit.
• The garage door balance test you can do in two minutes shows you how to know if the spring is healthy.
• A season-by-season garage door maintenance schedule gives you a month-by-month plan for Ottawa.
• How a garage door spring system works (torsion vs extension) explains the part that does the lifting.
• How many open and close cycles a garage door lasts tells you when parts are due to wear out.
