Garage Door Balance Test: How to Do It and Why It Matters

What is a garage door balance test?

A garage door balance test checks whether the springs properly counterbalance the door’s weight. You disconnect the opener, lift the door by hand to the halfway point, and let go. A balanced door stays where you left it. An unbalanced one drops or rises on its own.

The whole point of a garage door is that the springs do the lifting, not you and not the motor. A double door weighs 150 to 250 pounds, yet it should feel like eight to ten pounds in your hands when the counterbalance is set correctly. The balance test is the simplest way to confirm the spring system is still carrying that load. It takes two minutes and needs no tools.

Why does garage door balance matter?

Balance matters because the springs, not the opener, are meant to carry the door’s full weight. When balance drifts, the opener motor takes up the slack and burns out early. An unbalanced door also slams, creeps, or refuses to hold position, all safety and reliability problems.

Think of the opener as a guide that nudges a balanced door up and down. It was never built to be a winch. The moment the springs weaken from spring fatigue or fall out of adjustment, the motor starts lifting dead weight on every cycle. That is why an unbalanced door is the number one cause of premature opener failure, and why a door that closes too fast or opens by itself almost always traces back to bad balance. Understanding how the spring system creates door balance makes the test results much easier to read.

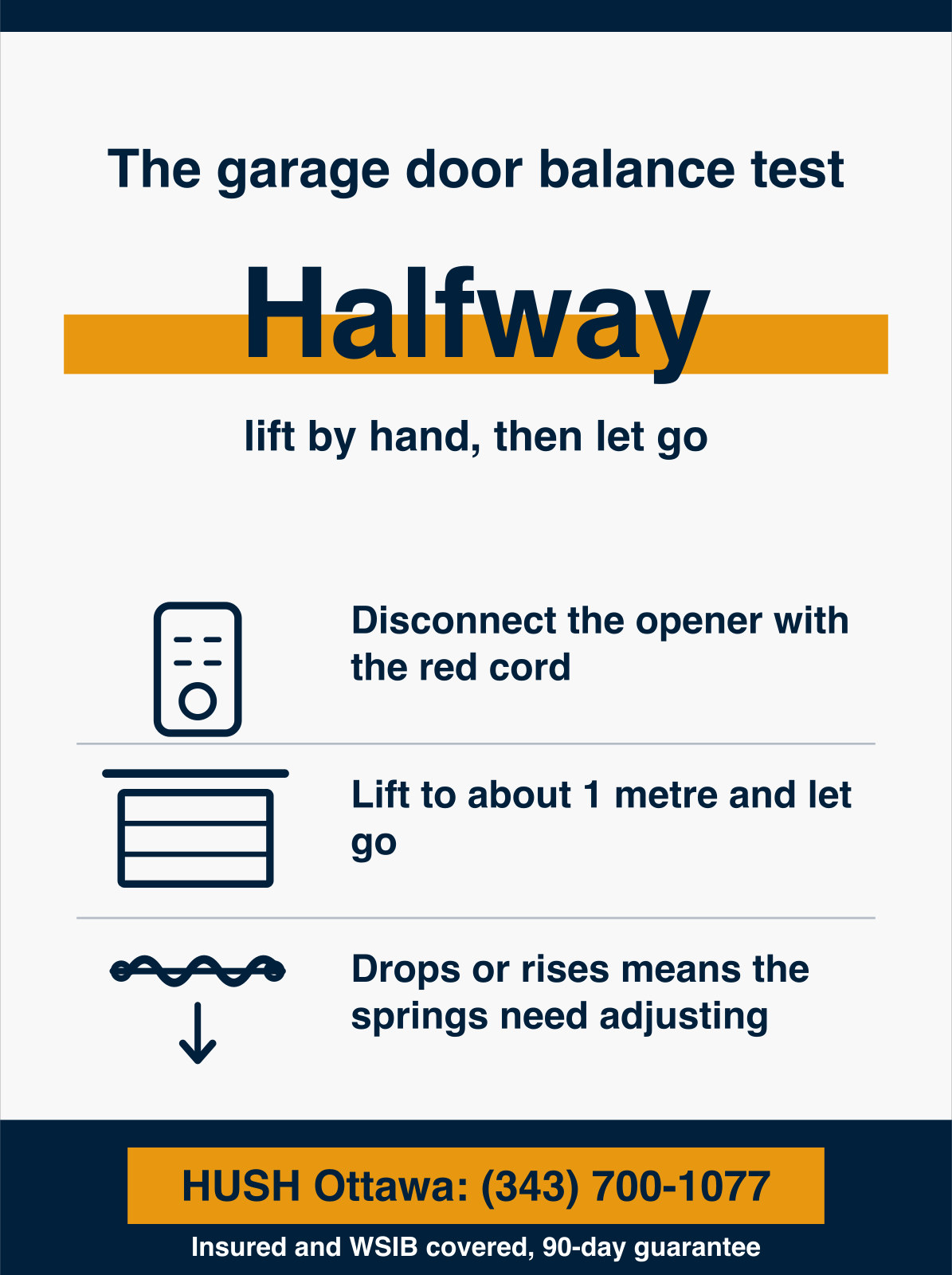

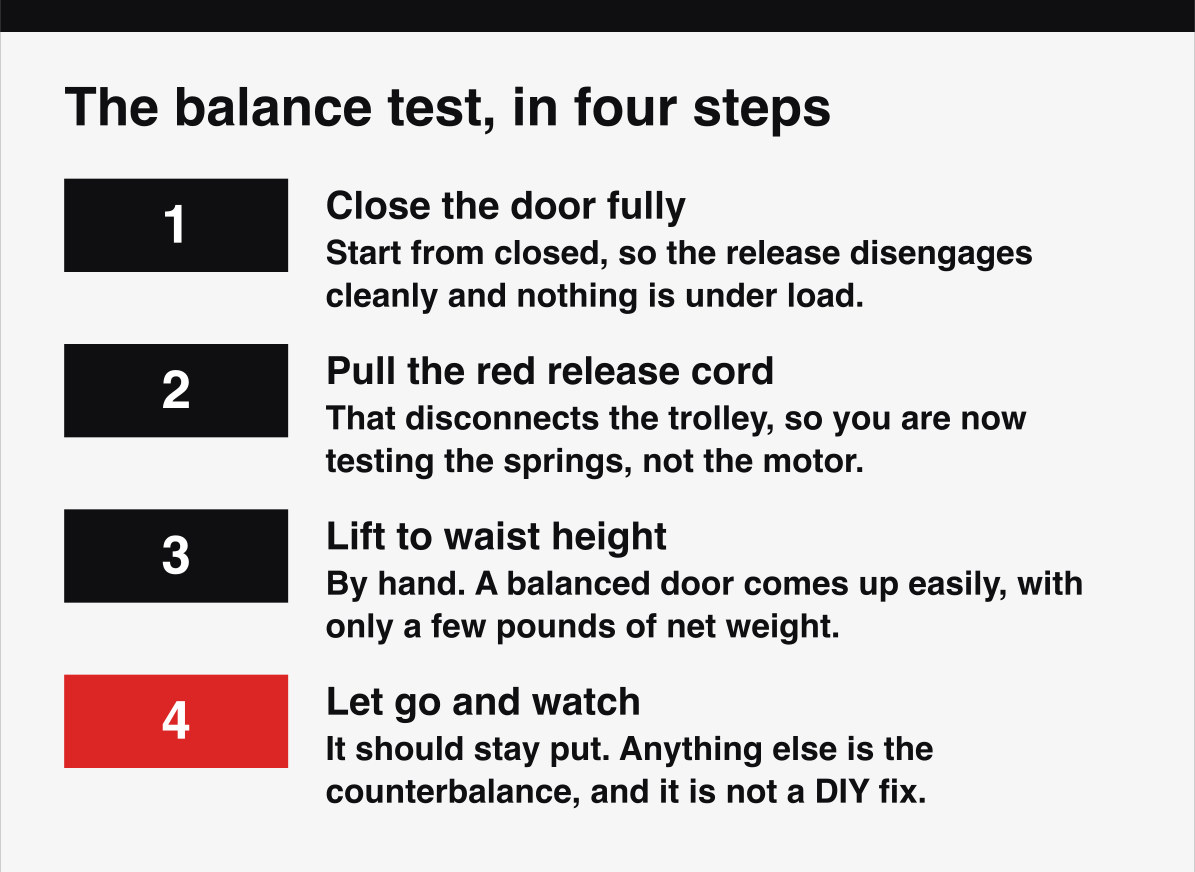

How to do the garage door balance test in 4 steps

Do the garage door balance test in four steps: close the door and disconnect the opener, lift the door halfway by hand, watch what it does when you let go, then lift it fully and check for binding. The four steps below take about two minutes start to finish.

Run the test on a door that has been closed and at rest, not one you just cycled twenty times. Stand to the side, keep kids and pets clear, and never put your fingers in the section joints while the door moves.

Step 1: Close the door and disconnect the opener

Fully close the door, then pull the red manual release cord so the door disconnects from the opener carriage. This is essential. If the opener stays engaged, the motor masks the spring problem and the test tells you nothing.

The manual release is the red handle dangling from the trolley rail, usually on a short cord. Pull it straight down and toward the door until it clicks. Now the door is in manual mode and rides on the springs alone. If you are unsure how the release works or how to re-engage it afterward, our manual release guide walks through it.

Step 2: Lift the door halfway by hand

Grip the bottom of the door and raise it smoothly to about waist height, roughly halfway open. A correctly balanced door feels light, like lifting eight to ten pounds, and glides up without scraping, catching, or fighting you.

If the door is so heavy you can barely budge it, stop right there. A door that feels like dead weight by hand usually means a broken or badly fatigued spring, and you should not force it or run the opener against it. That is a job for a technician with the right springs on the truck.

Step 3: Watch what the door does when you let go

Carefully let go of the door at the halfway point. A balanced door holds its position, or drifts only an inch or two. If the door slams down to the floor, or springs upward toward open, the spring tension is out of spec.

This is the heart of the test. The door should behave like it is suspended in mid-air, because the springs are exactly cancelling out gravity. Any strong pull in either direction tells you the counterbalance is wrong. A door that drops means too little spring tension, common as springs age. A door that flies up means too much, often after a DIY adjustment or a wrong-sized spring.

Step 4: Lift it fully and check for binding

Finally, raise the door fully open and lower it again by hand, watching the whole travel. It should move evenly with no spots where it sticks, jerks, binds, or suddenly speeds up. Smooth travel confirms the rollers and track are healthy too.

Binding partway up often points to a bent track, a worn roller, or a dry hinge rather than a spring issue. Listen for grinding or popping. If the door drags or squeals, the next thing to try is to lubricate the door before retesting balance, since dry rollers and hinges can fake a balance problem.

What do the results mean?

The results are simple to read: a door that holds the halfway position passes and your springs are fine. A door that drops or flies up fails and needs a spring tension adjustment. A heavy, sticking, or jerking door points to springs, rollers, or track wear.

Match what you saw to one of the two outcomes below. Either your counterbalance is healthy, or it is time to book a professional adjustment before the strain damages the opener.

A balanced door (passes the test)

A door that stays put at the halfway point, lifts with one hand, and travels smoothly has passed. Your springs are carrying the weight correctly and the opener is not overworked. Retest two or three times a year as part of routine upkeep.

A passing test is a great sign, but it is not a free pass forever. Springs are rated for around 10,000 cycles, roughly seven to twelve years of normal use, and they lose tension gradually. Folding the balance test into the complete garage door maintenance guide routine catches the slow decline before the door ever fails on you.

A door that drops or flies up (fails the test)

A door that slams down, creeps shut, or springs upward when you release it has failed. The springs no longer balance the door’s weight, which means the opener is straining on every cycle and the door is becoming unsafe to operate by hand.

A failed test has a few common causes. Springs lose tension as they age, so a door that drops is usually just tired springs. A door that flies up usually has too much tension from a prior adjustment or a mismatched spring. Either way the fix is the same: a technician needs to reset the counterbalance. This is not a DIY repair, for reasons covered next.

Why you should not adjust spring tension yourself

You should not adjust garage door spring tension yourself because torsion springs store enormous energy under tension. Loosening the set screws or turning the spring without proper winding bars and technique can snap a bar loose, break bones, or kill. This is the most dangerous garage door repair.

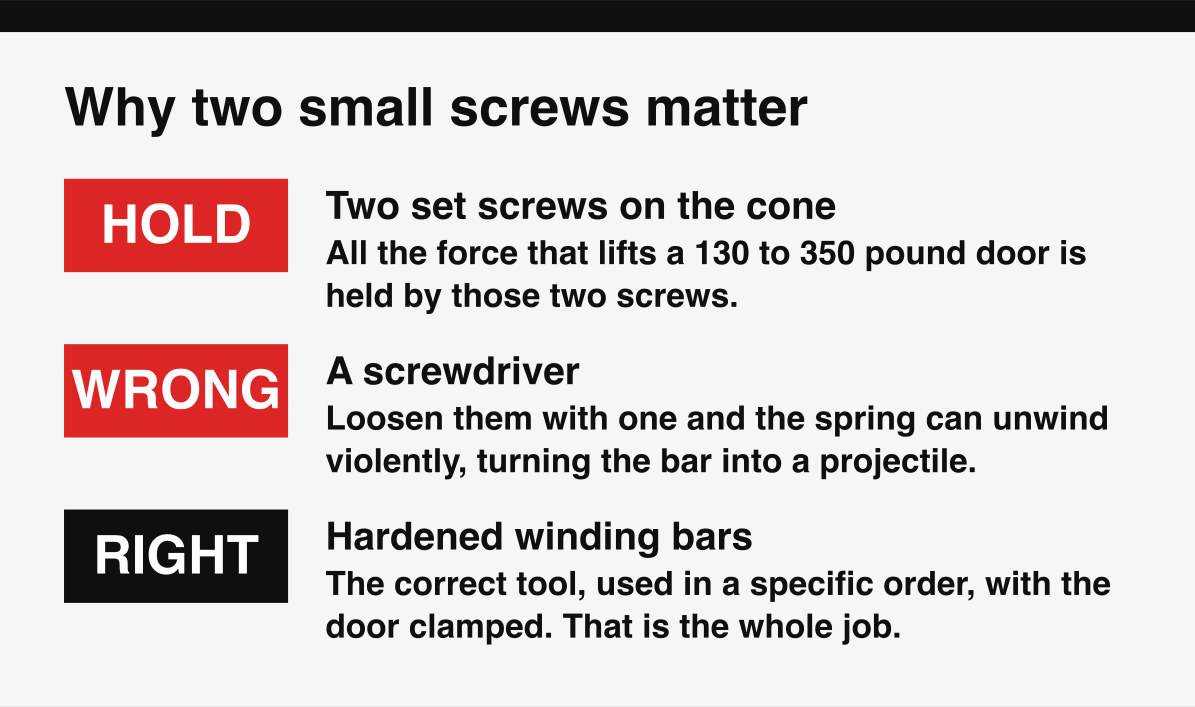

Here is what is actually happening inside a torsion spring. It is wound tight enough to lift a 200-pound door, and all of that force is held by two small set screws on the winding cone. Loosen those screws with a screwdriver instead of hardened winding bars and the spring can unwind violently, turning the bar into a projectile. Every year people end up in the ER from exactly this. Never try to wind a torsion spring yourself, call (613) 255-1968 instead. A factory-trained technician does this safely many times a day and our professional garage door spring adjustment and replacement is fast, with springs stocked on the truck.

What does a professional balance adjustment cost?

A professional balance adjustment is usually folded into a service call or tune-up, so expect $35 to $85 for the visit, often free with a repair over $250. If a fatigued spring has to be replaced rather than re-tensioned, a single spring starts at $200, a pair from $300.

There are no overtime fees and we quote the price before any work starts. Many doors just need the existing springs re-tensioned and the door re-balanced, which is the cheapest outcome. If the springs are worn or one coil is open, replacement is the honest call, because re-tensioning a tired spring only buys a few weeks. The smartest value is to book a tune-up that includes a balance adjustment, since we also check rollers, cables, and the opener’s force and travel limit settings in the same visit. If the test showed the motor labouring, you may also need garage door opener repair if the motor is straining.
