Insulated garage doors for Ottawa winters

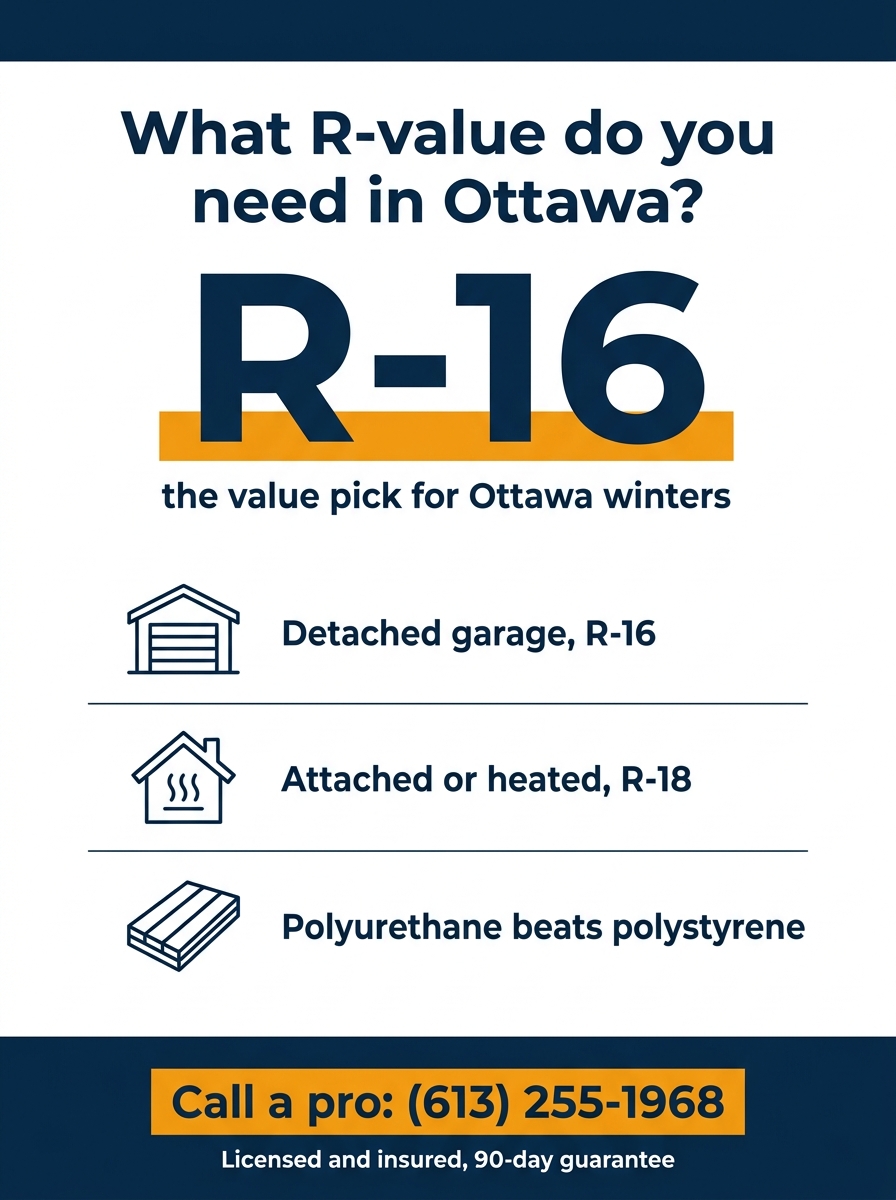

What R-value garage door do you need in Ottawa?

In Ottawa, where winter reaches -30 C, choose an R-16 or R-18 polyurethane door. R-16 is the value pick for a detached or unheated garage. Step up to R-18 for an attached garage, a heated shop, or a bedroom above the garage.

R-value measures how well the door resists heat flow, so a higher number means a warmer garage and a smaller energy penalty on the room next to it. Below R-16, a steel door in our climate sweats, frosts and loses heat fast. Once you pick the R-value, we handle the rest at your free in-home garage door installation quote, where we measure the opening and confirm the right door for your home.

What is garage door R-value, and how is it measured?

R-value rates a garage door's resistance to heat loss. A higher R-value means better insulation. It comes from the foam type and thickness inside the panel, plus the thermal break and seals that stop cold from bridging straight through the steel.

R-value is the inverse of U-factor, the rate at which heat passes through. Watch how a brand states it: a true door R-value counts the whole assembly, not just the foam core. A thermal break, the strip that separates the warm inner skin from the cold outer skin, keeps the rated number honest in real winter use. For the deeper buyer breakdown, read our guide to what garage door R-value means and how much you need.

Polyurethane vs polystyrene: which insulation is warmer?

Polyurethane is warmer. It is injected as a liquid foam that expands to fill the entire panel and bonds the two steel skins together. Polystyrene is a loose foam board slid into the panel, so it insulates less and rattles more.

For the same panel thickness, injected polyurethane delivers a higher R-value, a stiffer and quieter door, and better resistance to dents. Polystyrene doors are cheaper and fine for a detached garage you never heat. For an attached Ottawa garage, polyurethane is the one worth paying for. The insulation lives inside the panel, so the material you choose matters: see our overview of the steel garage doors where the insulation lives.

Single-layer, two-layer and three-layer door construction

Construction sets the warmth. Single-layer doors are bare steel with no insulation. Two-layer doors add a polystyrene board behind the steel. Three-layer sandwich doors trap injected polyurethane between two steel skins, the warmest and strongest build for Ottawa.

For most Ottawa homes with an attached garage, the three-layer polyurethane door is the right call. It is what we recommend when warmth, strength and a quiet door all matter.

Do insulated garage doors actually save energy and money?

Yes, when the garage is attached or heated. An R-16 or R-18 door slows heat loss through the largest opening in your home, cuts the draft into the room above or beside it, and keeps a heated shop usable through an Ottawa January.

If your garage is detached and never heated, the savings are smaller, but you still get a warmer space for the car, a quieter door, and far less frost on the inside skin. The energy win is biggest where the garage shares a wall or ceiling with living space, because that shared surface bleeds heat all winter. Pairing the insulated door with a fresh bottom seal and brush seals around the frame is what stops the drafts you actually feel.

Will an insulated door stop condensation and frost?

It helps a lot. A polyurethane door with a thermal break and a fresh bottom seal keeps the inside skin warmer, so less moisture condenses and freezes on it. Good seals around the frame matter as much as the R-value.

Frost forms when warm, humid air meets a cold steel skin, which is exactly what happens on an uninsulated or single-layer door in an Ottawa January. A three-layer polyurethane door with a continuous thermal break holds the inner skin closer to room temperature, so the moisture has nothing cold enough to freeze on. Pair it with a new bottom seal and brush weatherstripping at the frame to shut out the damp air that drives condensation in the first place.

Which Garaga insulated doors do we install in Ottawa?

As an Authorized Garaga Dealer, we install Garaga's polyurethane lines built in Quebec for our climate. They come in R-16 and R-18 with a thermal break and limited-lifetime parts warranty, so the rated warmth holds up in real Ottawa winters.

Garaga doors are made for cold-climate homes, with injected polyurethane, a continuous thermal break and dual weatherseals at the frame. We also service LiftMaster, Chamberlain, Genie, Clopay, Wayne Dalton and Steel-Craft if you are matching an existing door. To compare warmth and style across the range, see Garaga's R-16 and R-18 polyurethane door lines.

How much does an insulated garage door cost installed?

A new insulated single door starts from $1,500 installed and a double from about $2,800, depending on R-value, material and style. The three-layer polyurethane upgrade adds the most warmth and is the one most Ottawa buyers pick.

Whether you need a single or double changes the price more than the R-value does, so see how single vs double door sizing affects your quote. You do not have to pay it all up front: you can finance an insulated door from $89/mo with $0 down through Financeit, which lets you choose the warmer R-18 door now instead of settling for less insulation. We quote the full price in writing before any work starts, with no overtime fees and the service call free.
