How to Lubricate a Garage Door (And What Not to Use)

What is the best lubricant for a garage door?

The best lubricant for a garage door is a white lithium grease spray or a silicone-based garage door lubricant such as 3-IN-ONE or Blaster. Both cling to metal, stay flexible in cold weather, and will not collect grit the way oil and heavy grease do.

White lithium spray goes on wet, then sets into a thin grease that stays put on hinges, springs and bearings. A silicone-based lubricant is thinner, dries cleaner, and is the better choice for the rubber weatherseal and plastic parts. Either one beats a general purpose oil, because thin oils run off and need reapplying far too often. Avoid anything that lists “penetrant” or “cleaner” as its main job.

The reason the product matters is cold-weather viscosity. A lubricant that is fine at room temperature can thicken into a sticky paste at minus twenty, dragging on every roller and bearing. Lithium and silicone formulas stay thin in the cold, which is what you want on a door that has to lift on the coldest morning of the year. For the bigger picture on upkeep, see the full garage door maintenance guide.

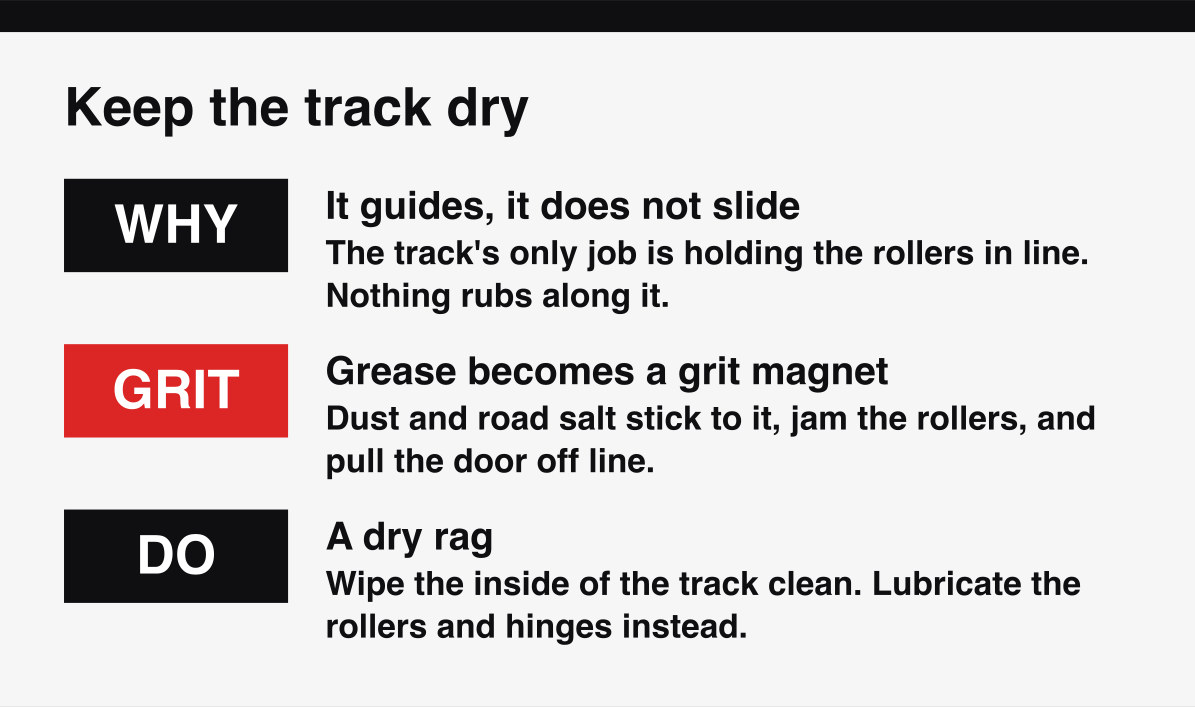

Why you should never use WD-40 or grease on the tracks

Never use WD-40 as your garage door lubricant, and never grease the tracks. WD-40 is a penetrant that dries out and attracts grit, and grease on a track traps dirt and makes nylon rollers slip and skip instead of rolling smoothly.

WD-40 has its place. It cleans, loosens a rusted bolt, and can dry out a squeak for a day or two. The problem is what happens next. It evaporates, leaves a sticky film that grabs dust, and can even thin out the packed grease inside a roller bearing, so the part you sprayed ends up drier than before. Use it to clean a dirty hinge if you like, then follow with a real lubricant.

The track mistake is just as common. People see a noisy door and coat the inside of the tracks with grease, thinking it will quiet things down. It does the opposite. The tracks are a guide rail, not a sliding surface. Their only job is to hold the rollers in line. Smear them with grease and they become a magnet for dust and grit, which jams the rollers and pulls the door off line. Tracks should be clean and dry. Lubricate the rollers and hinges, and wipe the tracks with a dry rag.

What you need before you start

Before you start, gather one can of white lithium or silicone-based garage door lubricant, a clean rag, a step stool, and ten minutes. That is the whole kit. You do not need to remove any parts or loosen any hardware to lubricate a door correctly.

A can with a thin straw applicator helps you aim into tight spots like the end bearing plates and hinge pivots without overspraying the wall or seal. Keep the rag in your other hand to catch drips right away, because lubricant on the rubber weatherseal or a track face just collects dirt. If your door is high or you cannot reach the springs and opener rail safely from a stool, that is a fine reason to let a technician handle it during a tune-up.

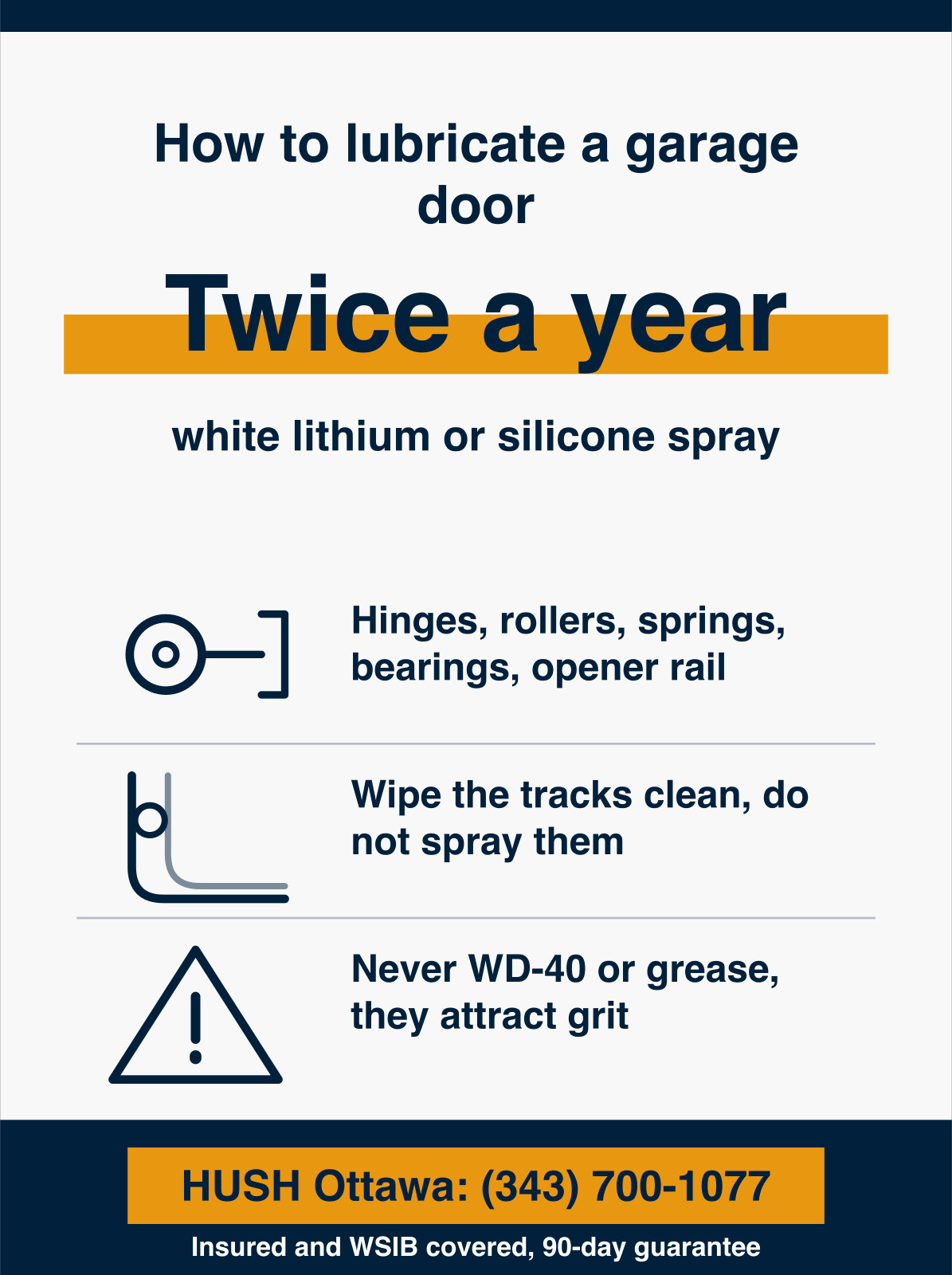

How to lubricate a garage door, step by step

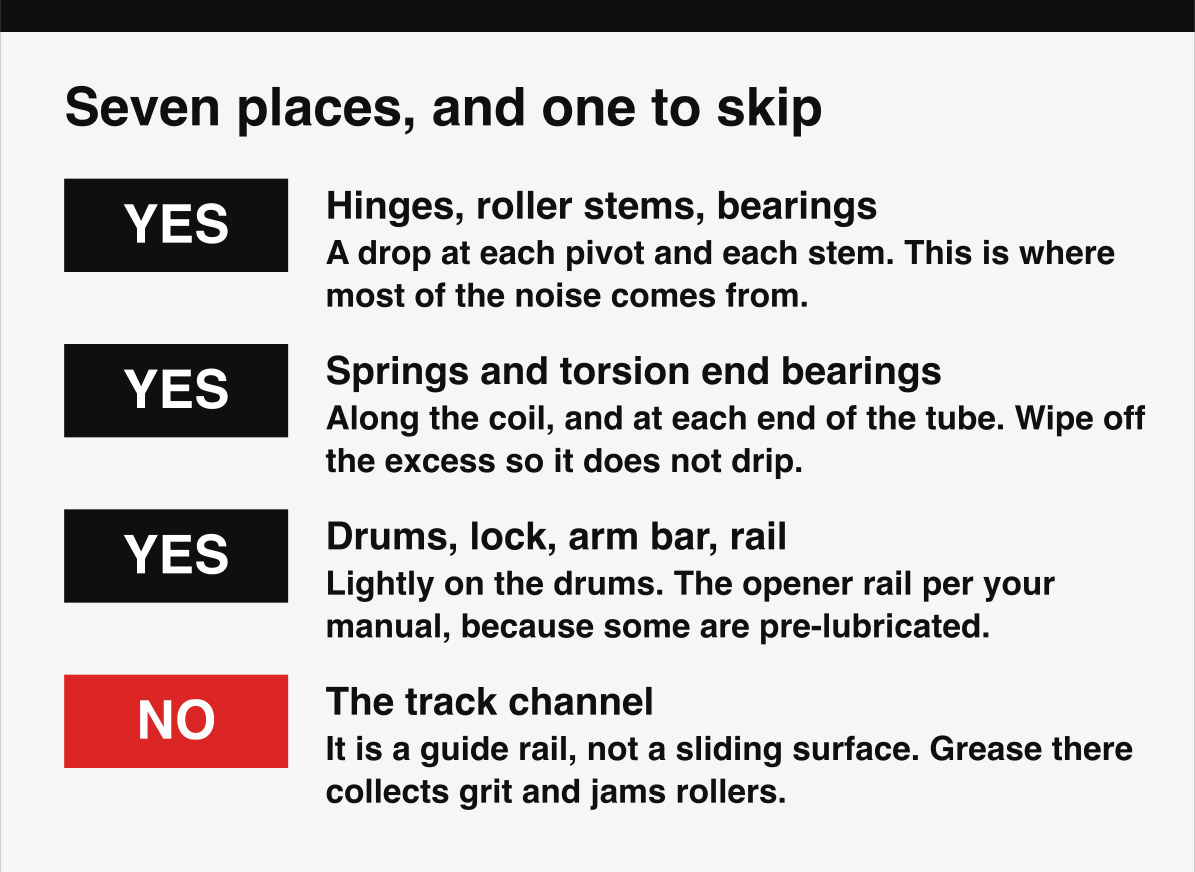

To lubricate a garage door, close it, kill the opener, then coat the hinges, rollers, springs, bearings, cable drums, lock, arm bar and opener rail with lubricant, and finish by wiping the tracks clean. Work top to bottom on both sides so you do not miss a part.

The numbered steps below match the HowTo at the top of this page. Move at a steady pace, give each part a light coat rather than a flood, and wipe overspray as you go.

Step 1: Close the door and unplug the opener

Lower the door fully, then unplug the opener or pull the red emergency release cord. With the door closed and the motor off, every hinge and roller is exposed and nothing can move while your hands are near the springs and rail. This is a safety step, not an optional one.

A closed door also stretches the rollers and hinges into the position where they actually carry load, so the lubricant lands where the wear happens. Take a moment here to look for anything obviously loose, frayed or rusted before you spray.

Step 2: Lubricate the hinges and rollers

Spray each hinge at the pivot point where the two leaves meet, then run the door open and closed by hand once so the lubricant works in. Next, lubricate the nylon rollers by aiming a short burst at the stem and the small bearings inside the wheel, not the wheel face.

Most doors have ten or more hinges and the same number of rollers, so work methodically from the bottom corner upward on one side, then the other. If a roller has a sealed bearing or is solid nylon with no bearing, a light mist on the stem is all it needs. Wipe any lubricant off the roller tread and the seal so grit does not stick.

Step 3: Lubricate the springs, bearings and cable drums

Mist the spring coils along their length, then hit the end bearing plates at each end of the torsion tube, the torsion tube bearings, and the cable drums at the top corners. A light coat lets the coils slide against each other quietly and slows the rust that Ottawa humidity and road salt cause.

Do not adjust, loosen or unwind a torsion spring. You are only spraying the outside of the coils so they move smoothly. A torsion spring stores enough force to break a hand, so lubrication is the only spring task a homeowner should attempt. If you have an older extension spring system running along the horizontal tracks, lightly coat those springs and pulleys the same way, and keep your body clear of them.

Step 4: Lubricate the lock, arm bar and opener rail

Lubricate the lock bar where it slides into the track slot, the arm bar pivot that connects the opener to the door, and the opener rail. How you treat the rail depends on the drive. Grease a screw drive rail, oil a chain drive lightly, and leave a belt drive alone, since rubber belts do not need lubricant.

If you are unsure which drive you have, look at the rail. A visible spinning rod is a screw drive, a bicycle-style chain is a chain drive, and a smooth rubber band is a belt drive. Belt drives are the quietest and need the least attention.

Step 5: Wipe the tracks clean (do not grease them)

Finish by wiping the inside of both vertical and horizontal tracks with a clean, dry rag to remove old grease, dust and grit. The tracks should be smooth and dry. They guide the rollers, so any lubricant left here will trap dirt and make the door bind and skip.

Run your eye along each track as you wipe and check for dents, flat spots or pinch points where a roller might catch. If you find a track that is bent or pulling away from the wall, that is a repair, not a maintenance job, and forcing the door against it will only make it worse.

How often should you lubricate a garage door in Ottawa’s climate?

Lubricate a garage door about every six months, twice a year, ideally in spring and fall. In Ottawa, the fall application matters most, because a fresh coat before the deep freeze keeps the springs, rollers and bearings moving on the coldest mornings.

Spring and fall is an easy schedule to remember, and it lines up with the temperature swings that are hardest on the door. The fall round, done in October or November, protects against the cold-weather drag that makes a door labour or refuse to lift below minus twenty. The spring round clears out the grit and road salt residue that built up over winter. A door that runs many cycles a day, or a busy household with several drivers, may earn a third application in the middle of the season. For the season-by-season plan, follow when to lubricate on a seasonal maintenance schedule.

Why is my garage door still noisy after lubricating?

If a garage door is still noisy after a full lubrication, the noise is mechanical, not dry parts. Worn nylon rollers, loose hinges, failing bearings, a chain that is too slack, or a door out of balance all make sounds that lubricant simply cannot quiet.

Lubrication silences the squeaks and the light grinding that come from dry, clean parts rubbing together. It cannot fix damage. A roller with a flat spot will still thump. A worn hinge with an elongated pin hole will still rattle and pop. A dying torsion tube bearing will still grind and chirp. And a door that is out of balance forces the opener to drag the full weight on every cycle, which sounds like a strained motor and a clanking chain. To rule that out, run a door balance test if noise continues after lubricating, and read what makes a garage door noisy to match your sound to its cause.

When a noisy door means something is worn or unbalanced

A persistent grinding, popping or banging after lubrication usually points to a worn part or a balance problem, not a maintenance gap. These are normal wear issues on a door that opens thousands of times a year, and they are straightforward to fix.

Here is how to read the sound:

• A rhythmic thump or pop as the door moves usually means worn rollers or hinges with play in them.
• A high grinding or chirping near the top corners points to a failing end bearing plate or torsion tube bearing.
• A loud bang followed by a door that will not lift is almost always a broken spring, not a lubrication issue at all.
• A grinding that comes from the motor head, not the door, is an opener problem. That calls for garage door opener repair if the grinding is in the motor.

None of these clear up with another can of spray. They need a part replaced or the door rebalanced, both of which a technician handles in one visit.

Book a tune-up if the noise does not stop

If the noise does not stop after lubricating, book a tune-up. A worn or unbalanced door is rarely just dry parts, and a technician can find and fix the real cause in one visit instead of you chasing the sound with another can of lubricant.

A HUSH garage door tune-up covers what a homeowner cannot safely do: we adjust the spring tension and door balance, replace worn rollers and hinges, tighten every bolt, check the cables and bearings, and lubricate the whole system with the right product. The service call runs $35 to $85, and it is free when it is part of a repair over $250, so a tune-up that turns into a roller or bearing replacement costs less than you would expect. We carry every brand on the truck and back the work with our 90-day guarantee.

Call HUSH at (613) 255-1968 or book a garage door tune-up to silence a worn or unbalanced door online. We offer garage door service across Ottawa and Gatineau, so a quiet, smooth-running door is never far away.
