Garage Door Cycle Life: How Many Open and Close Cycles?

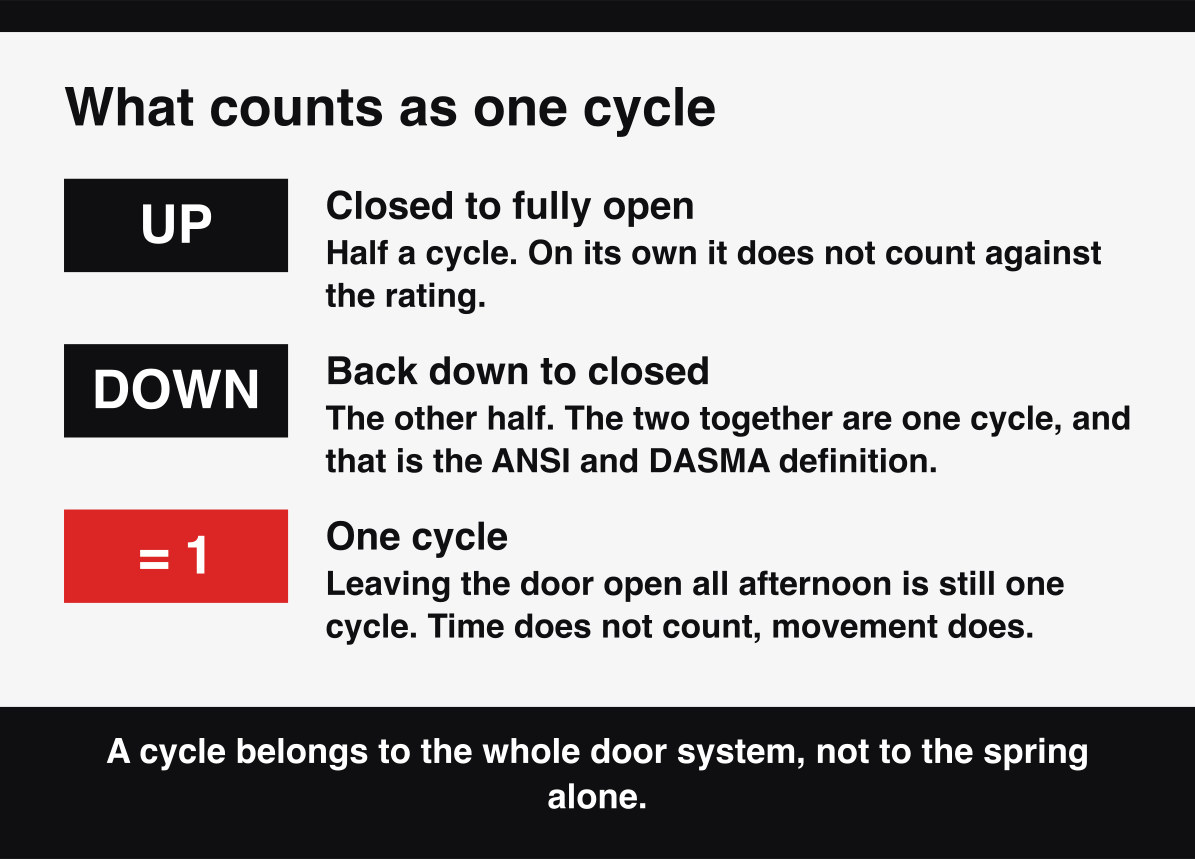

What is a garage door cycle?

A garage door cycle is one full open plus one full close. Lifting the door uses up half a cycle and lowering it uses the other half, so a single trip out and back counts as one cycle. Spring and opener ratings are all counted in these cycles.

This matters because cycle life, not age in years, is what really wears out the moving parts. A door opened twice a day ages far more slowly than the same door on a busy attached garage that opens twelve times a day. When a manufacturer rates a spring at “10,000 cycles,” they mean 10,000 of these full open and close movements before metal fatigue is expected to break it.

How many cycles do standard garage door springs last?

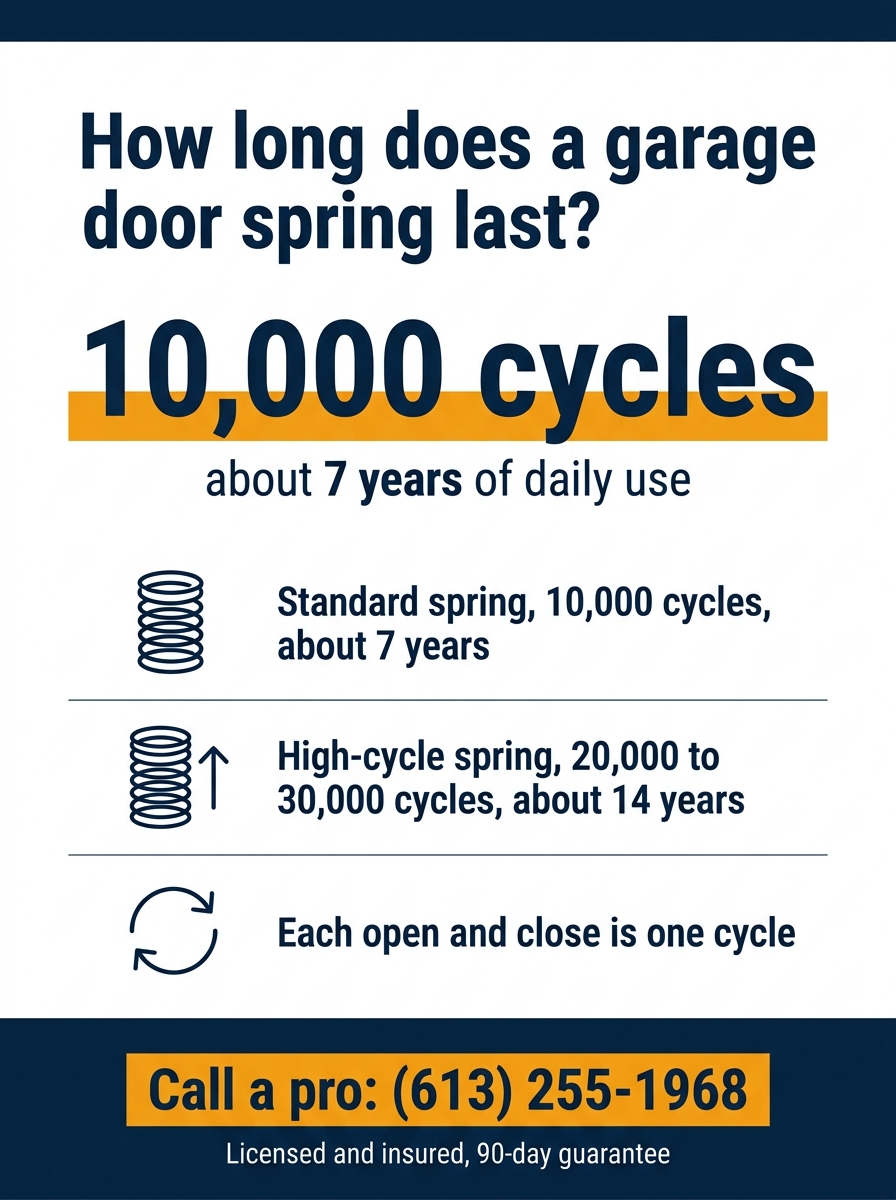

A standard torsion spring is rated for about 10,000 cycles, which is 10,000 full open and close movements. That is the baseline most builders install on new homes. Once a spring passes its rating, the steel has fatigued and it can snap with little warning, usually mid lift.

Springs do the heavy lifting on a garage door. A torsion spring stores energy as it winds, and every cycle stresses the steel a little more until it eventually fails. The two most common torsion springs we see in Ottawa are oil-tempered and galvanized wire, and the way spring wire size sets the cycle rating is the single biggest factor in how long they last. A thicker, longer spring with the right wind count carries the same door for more cycles than a thin builder-grade spring.

Cycle ratings explained: 10,000 vs 25,000 vs 50,000

Garage door springs are sold by cycle rating. Standard is 10,000 cycles, high-cycle springs jump to 20,000 or 25,000 cycles, and premium high-cycle springs reach 50,000 cycles. A 25,000-cycle spring is built with more steel and more winds, so it tolerates far more stress before fatigue.

Here is how the common ratings compare in real terms:

• 10,000 cycles (standard): the builder-grade default, the spring most homes ship with.
• 20,000 to 25,000 cycles (high-cycle): roughly double or two and a half times the standard life, the sweet spot for active families.
• 50,000 cycles (premium high-cycle): about five times standard life, ideal for an attached garage used as the main door into the house.

The jump comes from wire size, spring length, and the inside diameter of the spring. Bigger, heavier springs absorb each cycle with less strain on the steel. That is also why you cannot simply assume a longer spring is better without matching it to the exact door weight, which is a job for a technician, not guesswork.

How many years is that in real life?

Cycle ratings turn into years based on how often you use the door. At 2 cycles per day a 10,000-cycle spring lasts about 14 years, at 4 cycles per day about 7 years, and at a busy 8 cycles per day only about 3.5 years. Use, not age, sets the clock.

The math is simple. Take the cycle rating, divide by your cycles per day, then divide by 365. A family that leaves for work, comes home, and runs an errand can easily hit 6 to 8 cycles on a normal day. Add a teen driver or a home gym in the garage and the door cycles even more. This is why two identical doors on the same street can need new springs years apart.

How does daily use turn cycles into a lifespan?

Every household uses its garage door differently, and that usage is what converts a cycle rating into a real lifespan. A detached garage opened on weekends may never reach 10,000 cycles in 15 years, while a main-entry attached garage burns through the same rating in 3 to 4 years.

Use this quick reference for a standard 10,000-cycle spring:

• 2 cycles per day: about 14 years of life.
• 4 cycles per day: about 7 years of life.
• 6 cycles per day: about 4.5 years of life.
• 8 cycles per day: about 3.5 years of life.
• 12 cycles per day: about 2.3 years of life.

If your garage is the door you use most, your springs are wearing far faster than the builder’s “should last years” promise. That is the clearest signal to consider a high-cycle upgrade the next time a spring breaks, so you are not back replacing it in a few short years.

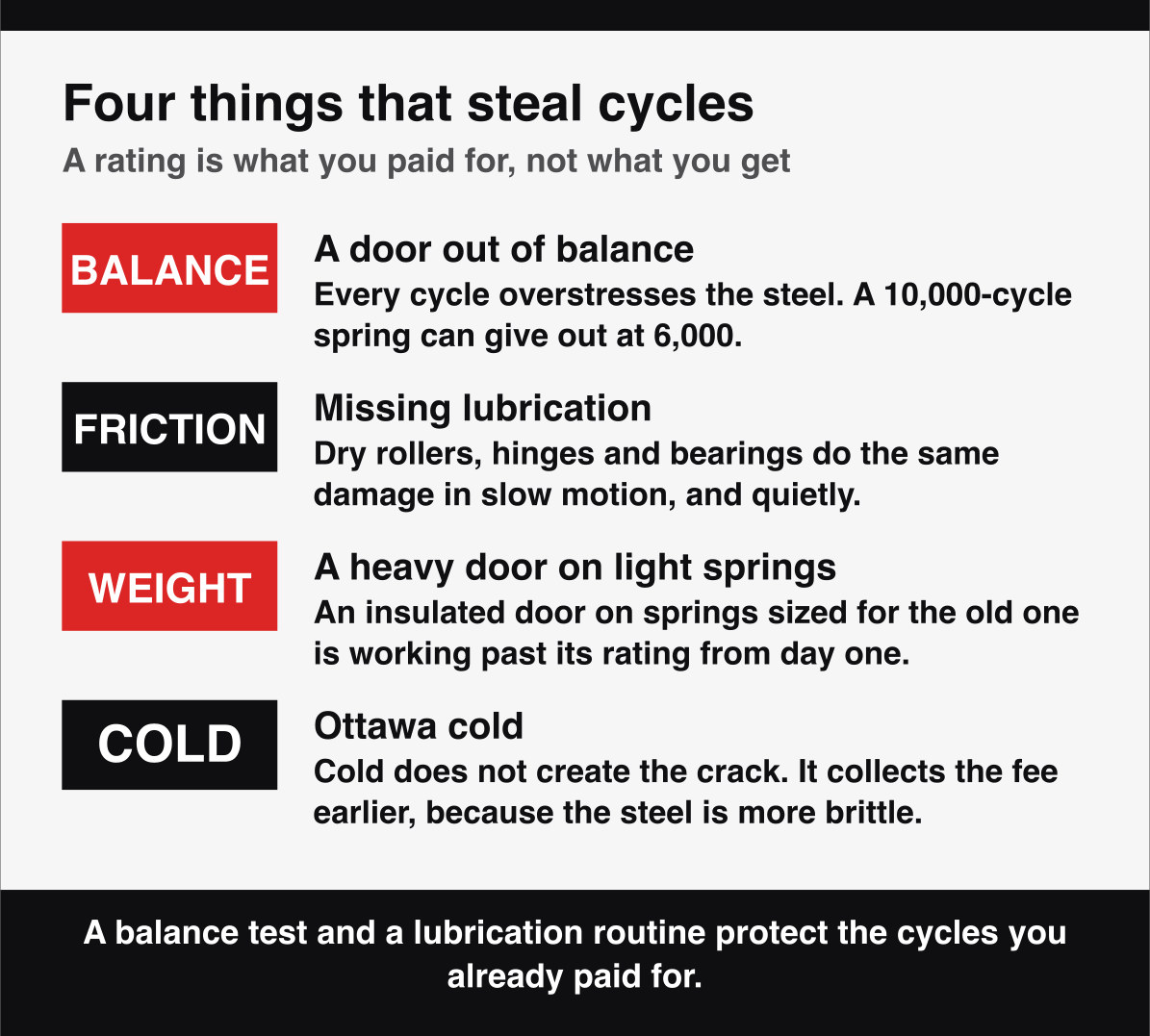

What shortens a garage door’s cycle life?

Several things shorten cycle life: an unbalanced door that forces the spring to work harder, missing lubrication that adds friction, a heavier insulated door on undersized springs, and Ottawa cold that makes steel brittle. Each one robs cycles the spring was rated to deliver.

The biggest hidden cost is a door that is out of balance. When the door is heavy on the spring, every cycle overstresses the steel, so a 10,000-cycle spring might give out at 6,000. Friction does the same thing in slow motion, which is why dry rollers, hinges, and bearings quietly steal cycles. A quick garage door balance test and lubrication routine is the cheapest way to protect the cycles you paid for.

Why do cold weather and poor maintenance cut cycle life?

Cold weather and skipped maintenance are the two fastest ways to lose cycles. In winter, steel becomes more brittle, so a tired spring near the end of its rating snaps on a cold morning. Without lubrication, friction adds load to every cycle and accelerates the fatigue that ends a spring’s life.

Cold-weather embrittlement is real. The spring does not weaken because of temperature alone, but a spring that has already used most of its 10,000 cycles is sitting on the edge, and the extra brittleness of cold steel is what finally pushes it over. That is why most springs break between November and March in Ottawa. Following the maintenance schedule that extends cycle life, especially seasonal lubrication and a balance check, is what keeps a spring delivering its full rating instead of failing early.

How long do the opener, rollers, and cables last?

Beyond springs, the other parts have their own lifespans. A garage door opener lasts about 10 to 15 years, standard rollers last around 7 to 10 years, and lift cables last roughly 8 to 12 years. Springs almost always wear out first, often two or three times over the opener’s life.

Here is the rough order parts wear out:

• Springs: about 10,000 cycles standard, roughly 7 years at average use, the first to go.
• Rollers: about 7 to 10 years, nylon rollers last longer and run quieter than steel.
• Cables: about 8 to 12 years, frayed cables should be replaced before they snap.
• Opener: about 10 to 15 years, a LiftMaster or similar belt-drive outlasts most chain units.

Because springs fail so much sooner than the door itself, you will usually replace springs at least twice before the whole door reaches the end of its life. That timing is exactly when a high-cycle upgrade pays off.

When should you upgrade to high-cycle springs?

Upgrade to high-cycle springs when your door is a main entry, when you have already replaced standard springs once, or when you are installing a heavier insulated door. In these cases a 25,000 or 50,000-cycle spring means you replace springs once instead of two or three times over the door’s life.

The decision is mostly about how hard you use the door. A weekend detached garage is fine on standard springs. A busy attached garage that cycles 8 or more times a day will chew through standard springs every 3 to 4 years, so paying a little more once for high-cycle steel saves repeat service calls. We carry high-cycle springs on the truck and can quote garage door spring replacement and high-cycle upgrades on the spot.

Should you repair or upgrade at end of life?

If only the spring is worn, replacing it, ideally with a high-cycle spring, is the smart, low-cost move. If the door panels are dented, the rollers and cables are aging, and you are facing a third spring replacement, upgrading to a new door with high-cycle springs built in often makes more sense.

Think about the whole door, not just the one part that broke. A spring replacement on a sound 8-year-old door is an easy yes. But if the door is 20 years old, poorly insulated, and every other part is near the end of its own cycle life, you are better off putting that money toward a new Garaga door with high-cycle springs installed so the entire system is fresh. Replacing parts one at a time on a worn door usually costs more in the long run.

How much do high-cycle springs and a new door cost?

A single standard torsion spring starts from $200 installed, and a high-cycle spring upgrade adds a modest amount on top of that. A new single garage door starts from $1,500 installed with high-cycle springs included. Financing is available from $89 a month.

Pricing depends on your door weight, spring size, and whether you replace one spring or a balanced pair. As a guide, a spring pair starts from $300, and our service call is $35 to $85, free when paired with a repair over $250, with no overtime fees. You can see the full breakdown on what garage door spring replacement costs before you decide. When you weigh repeat standard springs against one high-cycle upgrade, the high-cycle option is usually the better value over the life of the door.

Where can you get high-cycle springs in Ottawa?

HUSH Garage Door Service installs standard and high-cycle springs across Ottawa and Gatineau, sized to your exact door so the springs deliver their full rated cycle life. We are an Authorized Garaga Dealer, our work is backed by a 90-day guarantee, and a factory-trained technician does every spring job.

If your door is near the end of its life, upgrade once, not twice. Call HUSH at (613) 255-1968 and we will measure your door, recommend the right cycle rating, and carry the springs on the truck for same-day work. We provide garage door spring service across Ottawa and Gatineau, so you are covered from Kanata to Orleans to Barrhaven. You can also book online any time and pick a slot that works for you.
