Troubleshooting
Genie Garage Door Opener Red Light Flashing: Causes
By HUSH Garage Door Service· Updated

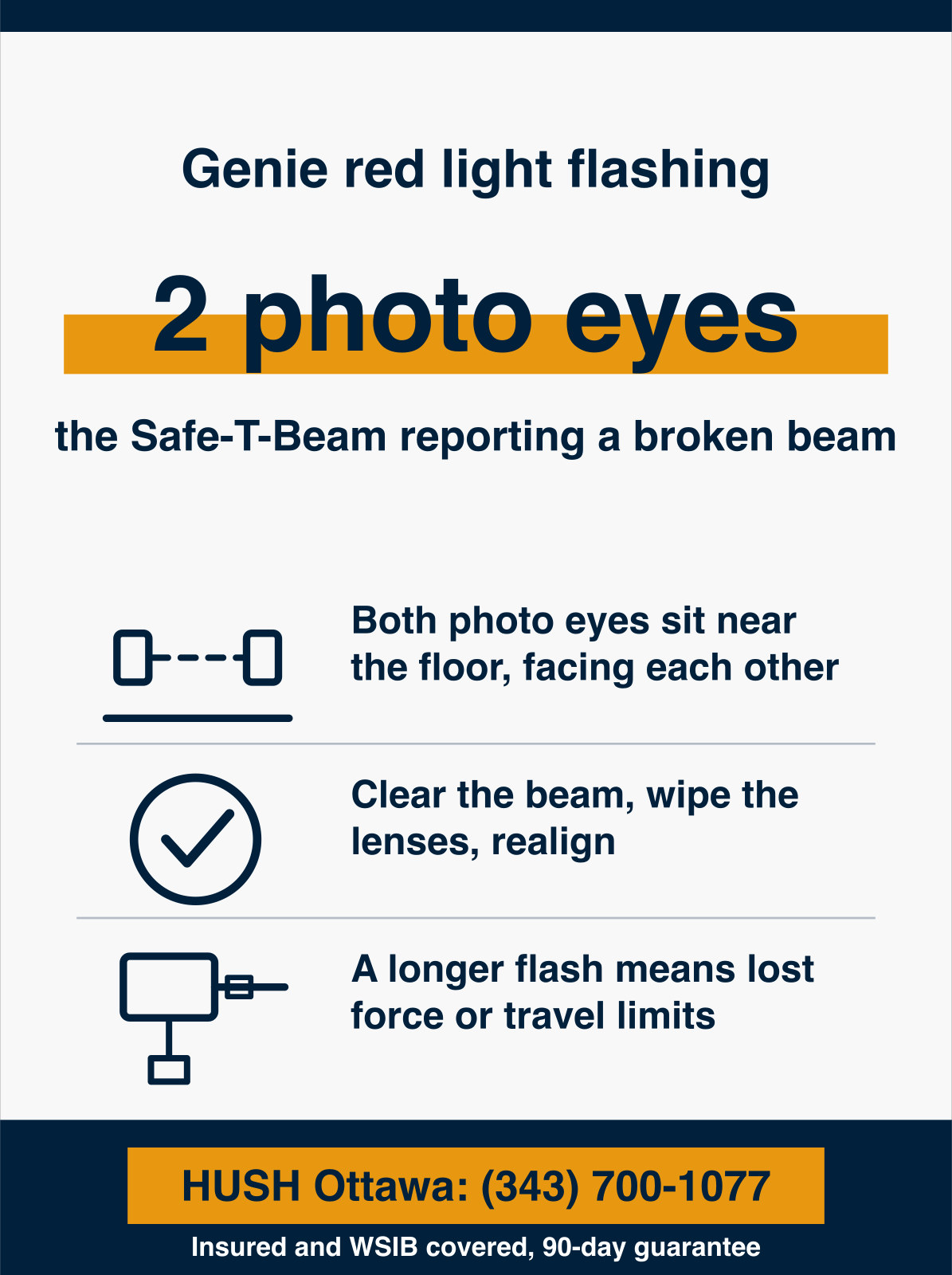

A flashing red light on a Genie opener is the Safe-T-Beam sensors reporting a broken beam. The 2 photo eyes near the floor are blocked, dirty or misaligned, so the opener refuses to close.
A pair of photo eyes sits about six inches off the floor, one each side, pointed at each other. A flashing light almost always means that beam is not landing.
Aligned
Both lights glow steady and the door closes normally.
Blocked
Something sits in the beam. The door reverses and the light flashes.
Misaligned
A sensor got knocked out of true. The light flashes with nothing in the way.
Misaligned is the common one, and it is the one you can fix yourself: loosen the wing nut, aim the sensor until both lights hold steady, then tighten it.
Do this, in order
-
Clear the beam path
Look at the two Safe-T-Beam sensors near the floor on each side of the door. Move any boxes, garbage bins, tools, or drifted snow out of the path between them so the infrared beam can reach across.
-
Wipe both sensor lenses
Clean each lens with a dry, soft cloth. Cobwebs, dust, road salt, and frost on the lens scatter the beam and trigger the flashing red light, even when the sensors are perfectly aimed.
-
Check the LED colours
On a healthy Genie the sending sensor glows steady red and the receiving sensor glows steady green. A flashing or dark green receiving LED means the beam is broken or the sensors are out of alignment.
-
Realign the sensors
Loosen the wing nut on the drooping bracket, tilt the sensor until the receiving LED stops flashing and glows steady, then tighten the wing nut without nudging it back out of aim.
-
Inspect the sensor wiring
Follow the thin wires from each sensor up to the motor head. Look for a staple through the insulation, a chewed spot, or a wire pinched behind a shelf. A short keeps the red light flashing no matter how clean the lenses are.
-
Test one full cycle
Run the door through one complete open and close cycle from the wall button and confirm the red light goes solid. If it keeps flashing, note the blink count and call a factory-trained technician.
Stuck, or the door is under spring tension? Stop and call (343) 700-1077.
Why is my Genie’s red light flashing?
A flashing red light on a Genie garage door opener is the Safe-T-Beam safety sensors reporting a broken infrared beam. The two photo-eyes near the floor are blocked, dirty, or out of alignment, so the opener refuses to close the door and flashes the red LED instead of a bulb fault.
Genie calls its photo-eye system Safe-T-Beam. One sensor sends an invisible infrared beam across the opening. The other receives it.
When anything breaks that beam, the opener will not lower the door. It cannot confirm the path is clear, so it flashes the red LED. Boxes, bins, a bicycle, cobwebs, road salt, frost and a drooping bracket all break it. A blinking red light on a Genie garage door opener is the same signal under another name, and the checks below apply to both.
For the same symptom on a LiftMaster, Chamberlain or Craftsman, see what every opener blink code means.
What should I check first on a flashing Genie?
Before you touch the motor head or reach for a manual, check the two Safe-T-Beam sensors near the floor. A blocked, dirty, or misaligned photo-eye causes the large majority of flashing-red Genie faults, and it is the one fix you can do in a couple of minutes with no tools.
Follow the six steps at the top of this page in order. Clear the beam path, wipe both lenses, read the LED colours, realign the drooping sensor, inspect the wiring, then test one full cycle.
The motor is usually fine. Your job is to restore a clean line of sight between the two sensors, which is the circuit behind garage door safety sensor repair.
Every brand treats a broken beam as an obstruction. That is also why a garage door reverses before it closes.
What do steady vs blinking Genie LEDs mean?
On most Genie openers a steady LED is healthy and a flashing LED is a fault. The sending Safe-T-Beam sensor glows steady red, the receiving sensor glows steady green, and the motor-head light stays solid. A dark or flickering green receiving LED means the beam is broken or misaligned.
Some newer Genie motor heads also carry a small status LED on the powerhead. A steady glow means the unit is powered and ready. A blinking powerhead light on a door that will not close usually points back to the Safe-T-Beam circuit.
Do not confuse a flashing red LED with a burned-out work bulb. The bulb is a separate part. Swapping it will not stop the flashing.
A green receiving LED that is dark rather than flickering means the beam is fully blocked, or a wire has gone open.
What do two blinks vs a longer count mean?
The number of flashes on the powerhead narrows down the fault, and Genie’s chart ties each count to the sensors. Two blinks mean the beam is out of line or blocked, or, if the green LED is off, a sensor wire is missing or bad. Three blinks mean the receiver is picking up interference, and four mean the sending sensor has stopped sending.
| What you see | What Genie says it means | First thing to try |
|---|---|---|
| Red and green sensor LEDs both steady | Sensors aligned, path clear, normal | Nothing, this is healthy |
| 2 blinks, green LED on | Beam not aligned, blocked, or a sensor defective | Clear the path, wipe the lenses, realign |
| 2 blinks, green LED off | A sensor wire is missing or bad | Inspect the wires for staples and breaks |
| 3 blinks | The receiving sensor is picking up interference | Look for sunlight or another light source hitting the receiver |
| 4 blinks | The sending sensor is not sending pulses | Book a technician; the sender or its wire has failed |
Watch the green receiving LED and the powerhead light. Count the flashes before the pause, then match the pattern above.

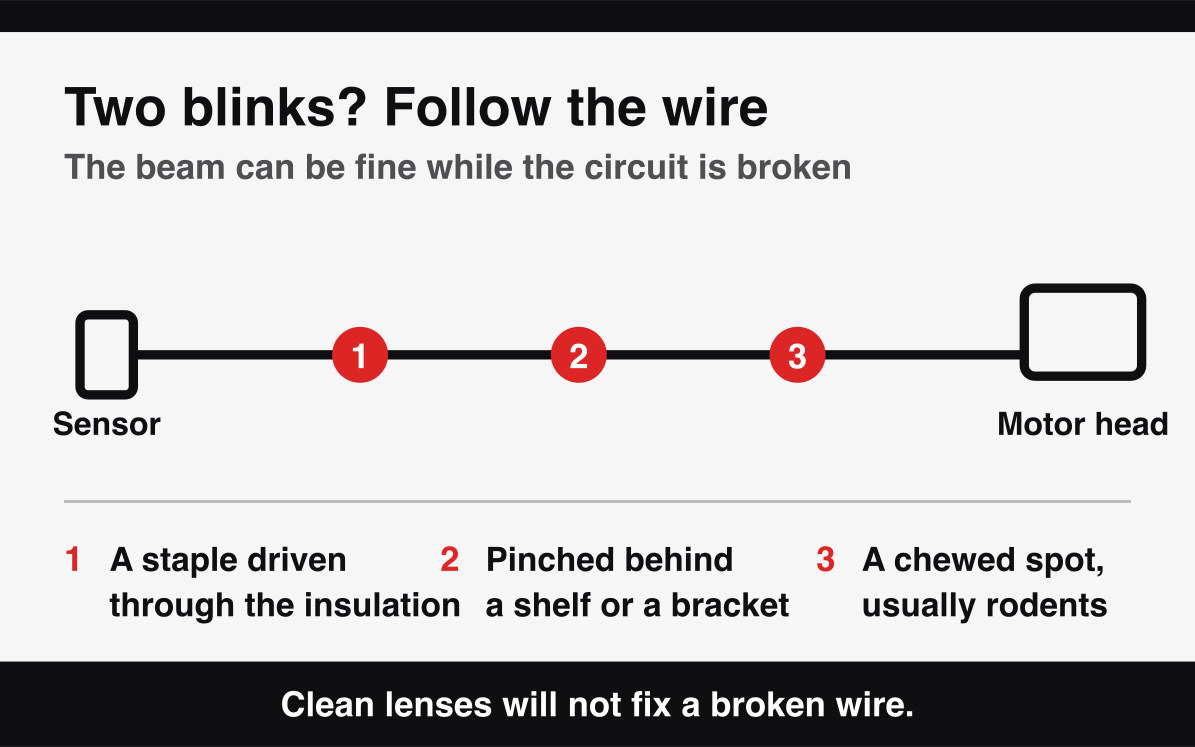

Two blinks with the green LED off send you to the wiring, not the lenses. The beam itself may be fine while a pinched or stapled wire breaks the circuit. Two blinks with the green LED on send you back to the aim and the lenses.
How do I realign the Safe-T-Beam sensors after counting blinks?
Realign a Genie Safe-T-Beam sensor by loosening the wing nut on the drooping bracket, tilting the sensor until the green receiving LED stops flickering and glows steady, then tightening the wing nut without bumping it back out of aim. Both sensors must sit at the same height, usually about six inches off the floor.
A loose wing nut lets a bracket sag over months until the beam misses the receiver. That is the most common reason a Genie starts flashing on a door that worked fine for years. On barn-style and outbuilding doors the sensors also get knocked out of aim easily, one of the repairs we run most often on Cumberland’s house, shop and outbuilding doors.
Aim the sending sensor straight at the receiver across the opening. When the aim is right, the green receiving LED locks solid and holds as you let go. A flicker the moment you release the bracket means it is still slightly off.
For a step-by-step on both photo-eyes, read how to align garage door sensors.
How do I relearn the force or travel limits after realigning?
When both sensor LEDs are steady and the door still stops short or reverses, check the force and travel limits next. The opener no longer knows exactly where the floor and the fully open position are, so it stops or reverses rather than risk crushing something or burning out the motor.
A power outage, a surge, or a door that stalled on an obstruction all scramble the limits. To relearn them, press and hold the Program button on the powerhead. Then follow the up and down limit steps in your Genie manual, because the sequence varies by model and by drive type.
Run a full cycle afterwards. The door should seat firmly on the floor without bouncing back.
If it over-travels, stops high, or the flashing returns after a relearn, the travel sensor or control board may be failing. That is a Genie garage door opener repair job, not a homeowner reset.
When should I stop relearning limits and call a technician?
Call a factory-trained technician when the red light keeps flashing after you have cleared the path, wiped the lenses, confirmed both LEDs are steady, checked the wiring, and tried a relearn. A code that returns then means a sensor head, wire, or control board has failed.
