Garage Door Safety: What You Can Do Yourself and What Needs a Pro

If a spring has just snapped or a cable is hanging loose, stop here. Do not run the opener, keep everyone out from under the door, and call (343) 700-1077.

Which garage door jobs are safe for a homeowner, and which are not?

Lubricating, running a balance test, cleaning the sensors, and testing the auto-reverse are all safe to do yourself. Springs, cables, off-track doors, and drum or shaft work are not, because those parts hold the door’s full weight under tension and can fail violently the moment you loosen them.

The simple rule is this: if a job does not touch the spring system or the cables, you can usually do it. If it does, a slip or a wrong move releases hundreds of pounds of stored force in a fraction of a second. There is no “be careful” that makes that safe without the right training and tools.

Safe DIY: lubrication, balance, sensors, auto-reverse

A handful of maintenance tasks carry little risk and keep your door safe. You can lubricate the rollers, hinges, and springs, run a balance test, wipe and align the photo-eye sensors, and test the auto-reverse. These take minutes and prevent most failures.

Here is what each one looks like:

• Lubrication. Wipe a silicone or lithium spray on the rollers, hinges, and spring coils every few months. Skip the track itself. Good lubrication is the single biggest thing you can do to extend a door’s life and keep it quiet.
• Balance test. With the door fully closed, pull the red release cord, lift the door halfway by hand, and let go. A balanced door holds its position. If it drops or flies up, the spring tension is off and the door needs service before the opener wears out.
• Sensor cleaning. The two photo-eye sensors near the floor get bumped, dusty, and webbed over. Wipe the lenses and make sure both line up so the indicator lights are steady, not flashing.
• Auto-reverse test. Lay a 2x4 flat on the floor under the centre of the door and close it. The door must reverse the moment it touches. If it does not, stop using the opener and get it checked.
• Tightening hardware. A door cycles thousands of times a year, and bolts on the hinges and brackets work loose. You can snug them with a socket wrench, as long as you stay away from the red-painted bottom bracket.

For a full walk-through you can follow at the door, see the homeowner garage door safety inspection checklist. Two of those points are the ones that stop a door on a child, and they get their own walkthrough in how to test your garage door auto-reverse and photo-eye sensors.

Never DIY: springs, cables, off-track doors, drums

Some jobs are off limits no matter how handy you are, because each one releases the energy holding up a 130 to 350 pound door:

• replacing a torsion or extension spring;
• swapping a lift cable;
• putting a door back on its track;
• touching the drums, the shaft or the bottom brackets.

One mistake on any of them injures people.

A torsion spring is wound to a precise tension to counterbalance the door. To change it you have to control that tension with winding bars, and if a bar slips or the spring is already cracked, it lets go with enough force to break an arm or worse.

Cables carry the same load and whip when they snap. An off-track door is one of two states where the door’s weight is no longer held the way it should be. The other is a broken spring, and handling a door in either state is dangerous. Read why you should never replace a garage door spring yourself for the full picture.

Why are garage door springs and cables so dangerous?

Springs and cables are dangerous because they hold the door’s entire weight, 130 to 350 pounds, under constant high tension. When a spring or cable fails, that stored energy releases all at once, sending metal moving fast enough to break bones, take fingers, or strike a head.

A garage door does not feel heavy when the opener lifts it, and that is exactly the illusion. The motor only nudges a door that the spring system has already balanced. Take the spring out of the equation and the full dead weight comes back instantly. That is why a door with a broken spring feels like lifting a small car by hand.

How much energy does a torsion spring store?

A torsion spring on a typical Ottawa double door is wound to lift 200 to 300 pounds, and it holds that tension the whole time the door sits closed, day and night, for years.

Most springs are rated for about 10,000 cycles, roughly seven years for a household that runs the door four times a day. As they near the end of that cycle life, the steel fatigues and becomes brittle, and in Ottawa’s cold that brittleness gets worse. A spring that has been holding a door up for years does not ease off when it fails. It snaps.

What happens when a cable or spring lets go?

When a torsion spring breaks, the coil unwinds in a fraction of a second with a loud bang, and the door slams down or jams. When a lift cable snaps, it whips loose and the door can drop or twist off its track. Either failure can crush a hand, break a limb, or hit someone standing nearby.

This is not a rare freak event. Springs and cables are the parts that wear out first because they do the most work, and the door manufacturers themselves, Garaga and Raynor included, tell homeowners in writing never to touch the spring system. The danger is highest the moment you handle a part still under load. That is why a broken spring is a call to professional garage door spring repair in Ottawa, not a project.

Spring or cable problem? Do not touch it. Call HUSH at (343) 700-1077 and we will come to you, often the same day.

What are the safety features on a modern garage door?

A modern garage door has three core safety systems: photo-eye sensors with an auto-reverse, a manual emergency release cord, and tamper-resistant bottom brackets. Together they stop the door from crushing a person or pet, let you escape a power outage, and keep the cable from whipping when a spring fails.

These features have been standard for decades, but only if they are kept in working order. A misaligned sensor or a worn bottom bracket quietly defeats the protection. That is why testing them is part of every garage door tune-up and safety inspection.

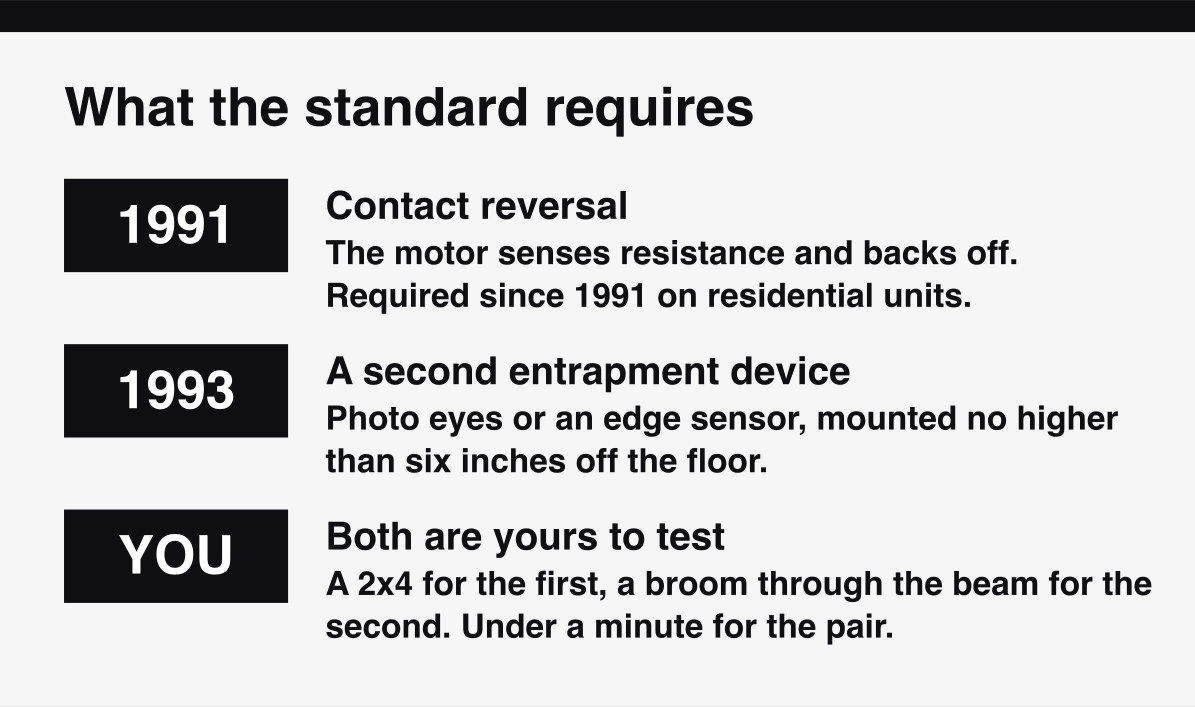

Photo-eye sensors and auto-reverse (standard since 1993)

Every garage door opener made for the U.S. market since 1993 must have an auto-reverse and an external safety device such as photo-eye sensors, under U.S. federal law and the UL 325 safety standard, and the LiftMaster, Chamberlain and Genie openers sold in Ottawa carry the same two systems. An invisible beam runs across the bottom of the opening, and if anything breaks it while the door is closing, the door stops and reverses.

The two sensors sit about six inches off the floor on each side of the door. Keep them there. Raising them so a bin or a snowbank stops blocking the beam lets the beam pass over a small child or pet lying on the floor. If they are knocked out of line, blocked, or caked with dust, the door may refuse to close or, worse, fail to reverse.

Test the auto-reverse monthly by blocking the beam and by laying a 2x4 under the door. If it does not reverse on either test, stop using the opener and book an opener and sensor repair.

If the door starts reversing for no clear reason, do not turn up the force setting on the opener to push it closed. That setting decides how hard the door presses before it gives up and reverses, so raising it weakens the contact reverse. A door that suddenly needs more force usually has a spring, roller or track problem behind it.

Manual emergency release cord

The red cord hanging from the opener trolley is the manual emergency release. Pulling it disconnects the door from the motor so you can lift it by hand during a power outage or a motor failure. Every adult in the house should know where it is and how it works.

Use it only on a fully closed door, never on one that is open or partly open, because a weak or broken spring can let the door crash down once it is disconnected. Before you lift, look at the springs and cables without touching them; if one is broken or loose, do not lift the door. For the safe procedure step by step, see how to open a garage door manually with the emergency release.

Tamper-resistant bottom brackets and containment cables

The bottom brackets, painted red on most doors, anchor the lift cables to the corners of the bottom panel and sit under the full tension of the spring system. They are made tamper-resistant on purpose, because loosening one releases that tension straight into your hands. Leave them alone.

On doors with extension springs, a containment cable should run through the centre of each spring. Its only job is to catch the spring if it breaks, so the coil cannot fly across the garage. If your extension springs have no containment cable, that is a safety gap a technician can close in minutes during a tune-up. Not sure which springs your door has? Here is how to tell a torsion spring from an extension spring from the floor.

Can you open or close a garage door without power?

Yes, you can open a garage door without power by pulling the emergency release, but only on a fully closed door. Pull the manual release only on a fully closed door. Never pull it on an open, stalled or off-track door. If a spring looks broken or the door feels heavy, do not lift it by hand; leave it closed and call.

Closing is the harder half. A door that was open when the power went out stays open: leave it up, keep people and cars out from under it, and wait for the power or a technician rather than releasing an open door. An opener with a working battery backup keeps running through an outage, so check that battery before the next storm with our opener backup battery walkthrough.

How do I keep my family safe around the garage door?

Treat the door as the largest moving object in your home. Never let anyone walk under a moving door, test the auto-reverse every month, keep the wall button and remotes out of children’s reach, and watch the door close fully before you drive away.

A garage door opening or closing creates several pinch points where panels meet and where the door meets the frame. Most injuries to children come from fingers in those gaps or from a door that did not reverse. A two-minute monthly habit catches both before they hurt someone.

Garage door safety for children and pets

Children and pets are most at risk from the moving door and its pinch points. Keep wall controls at least five feet up and out of small hands, never let kids play with the remote, and teach them that the door is not a toy. Watch pets clear the opening before you close it.

The auto-reverse is the backstop, but it is not a babysitter. The photo-eye beam sits about six inches up, so it does not see fingers between the panels or a hand on the track. Supervision plus a tested auto-reverse is what keeps them safe, not one or the other.

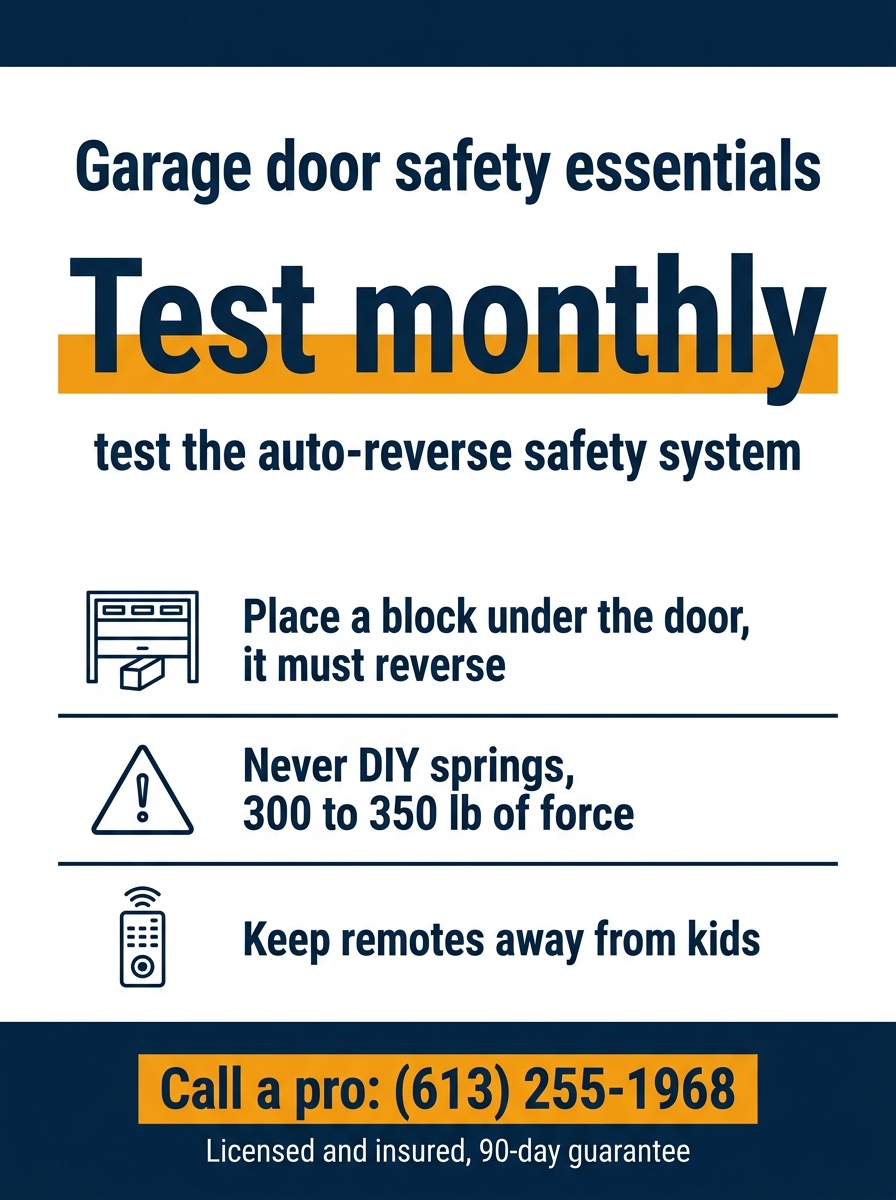

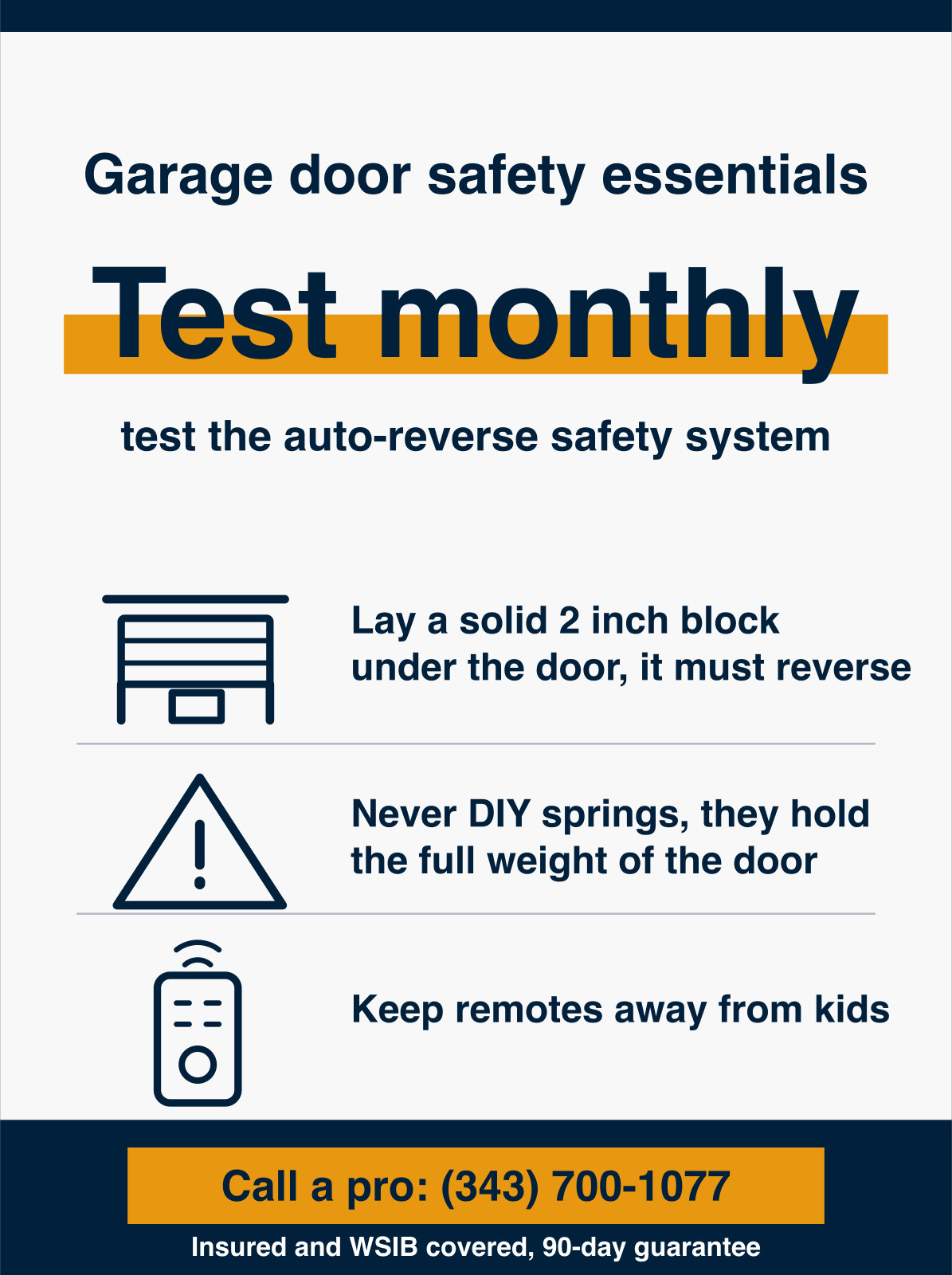

Monthly 2-minute safety habits

A short monthly routine keeps the safety systems honest:

• Block the photo-eye beam and confirm the door reverses.
• Lay a 2x4 flat under the door and confirm it reverses on contact.
• With the door closed, run a balance test by hand.
• Lubricate the rollers and hinges if they squeak.

If any of those tests fail, stop using the opener until the door is checked. A door that will not reverse or that drops when you lift it by hand is telling you the springs or the sensors are no longer doing their job. You can keep the full routine on hand with the homeowner garage door safety inspection checklist.

Which garage door safety mistakes should you avoid?

The mistakes to avoid are quick fixes that quietly switch off a safety system, from raising the photo-eyes to turning up the opener force. Each one feels like it solves a nuisance, and each one removes a layer of protection:

• Raising the photo-eyes. Above about six inches, the beam misses a small child or pet on the floor.
• Turning up the opener force. It makes a sticking door close, and it stops the door backing off when it hits something.
• Pulling the release cord on an open door. If a spring is broken, a disconnected open door can crash down. Pull it only with the door fully closed.
• Running the opener after a bang. A loud bang usually means a snapped spring, and every cycle after it drags the full weight on the opener and cables.
• Loosening the red bottom bracket. It holds the lift cable under full spring tension.
• Leaving extension springs without safety cables. Without a cable through its centre, a snapped extension spring flies across the garage.
• Beating the door. Ducking under or driving out as the door comes down treats the reverse systems as permission instead of a backstop.

If the photo-eyes have already been raised, lower them back to about six inches and realign them. A force setting that was turned up is worth having a technician reset during a tune-up, along with whatever made the door stick.

When should I call a professional to keep my family safe?

Call a professional the moment a job touches any of the 4 high-tension parts: springs, cables, drums or bottom brackets. Call too if the door is off track, bent, heavy by hand, or will not reverse. These are tension and balance failures. They cannot be made safe with care alone, and forcing them turns a small fix into a real injury.

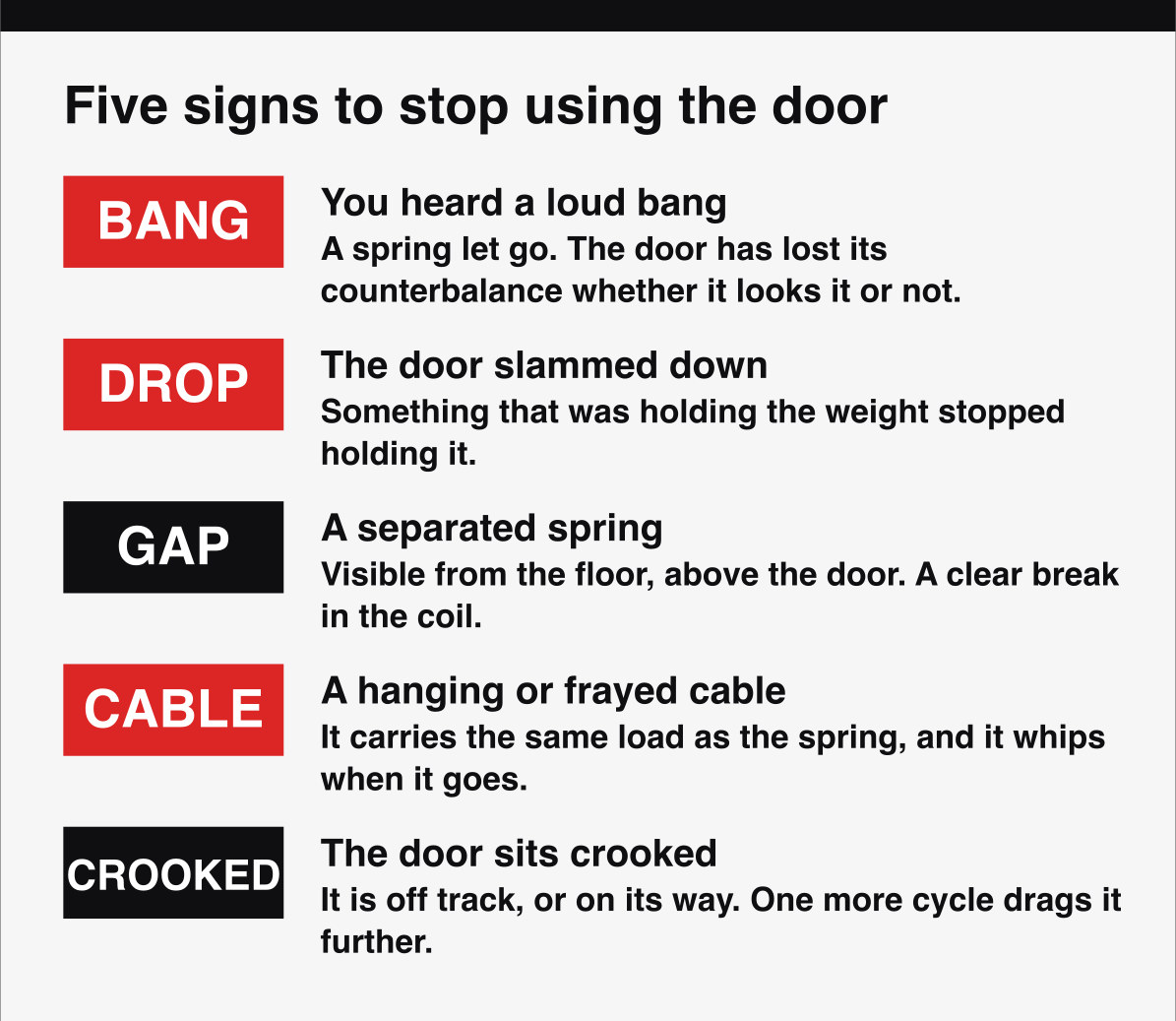

Stop using the door on any of these five signs:

• You heard a loud bang.
• The door slammed down.
• A spring above the door looks separated.
• A cable is hanging or frayed.
• The door sits crooked in its track.

Do not run the opener, and do not muscle the door. A factory-trained technician on a spring and cable repair call carries the springs, cables, and rollers on the truck and resets the tension with the right tools.

HUSH’s service call starts at $150, and it is free with any repair over $250. A single torsion spring starts at $275 and a pair starts at $400, opener repair starts at $185, and an opener install starts at $595, all before HST. We quote the price before we start, we charge no overtime fees, and we back the work with a 90-day Done-Right Promise. If you are unsure whether a problem is DIY-safe, call (343) 700-1077 and we will tell you honestly over the phone.

Why do Ottawa winters make it less safe to leave it to yourself?

Ottawa winters make garage door safety worse because cold steel becomes brittle, so tired springs and cables that would survive summer snap on a deep-freeze morning. Frozen seals and refrozen meltwater also tempt homeowners to force the door, which strips gears and snaps cables.

Spring failures spike in January and February for exactly this reason. A spring near the end of its 10,000-cycle life is already fatigued, and Ontario cold-climate temperatures push brittle steel over the edge. Cold also stiffens grease, so a door that was barely balanced in the fall can feel heavy and strain the opener once the temperature drops.

The safest winter move is to have the springs, cables, balance, and seals checked before the deep freeze rather than after a part lets go. A garage door tune-up and safety inspection catches a fatigued spring while it is still in one piece, which is far safer and cheaper than a cold-morning breakdown.

Explore the full garage door safety cluster

This page is the hub for our safety cluster. Each guide below goes deeper on one piece of keeping your door, and the people around it, safe. Start with the spring danger and the auto-reverse test, since those cover the two failures most likely to hurt someone.

• Why you should never replace a garage door spring yourself, the single most dangerous DIY job.
• How to open a garage door manually with the emergency release, the safe way to use the red cord.
• The monthly garage door safety checklist, a printable monthly routine.
• How to test your garage door auto-reverse and photo-eye sensors, the two-minute test that prevents crush injuries.

For the parts a pro should handle, see professional garage door spring repair in Ottawa. The motor head and the safety circuit are the other two you should not open yourself, and both are covered under opener and photo-eye repair.

Get a factory-trained technician to check your door

If you want certainty instead of guesswork, book a tune-up and let a factory-trained technician inspect the springs, cables, balance, sensors, and auto-reverse in one visit. We come to you across Ottawa and Gatineau, seven days a week, with no overtime fees and a 90-day Done-Right Promise.

We are owned by Omar, a factory-trained garage door technician. Book a tune-up and 25-point safety inspection online, or call (343) 700-1077 and we will tell you exactly what your door needs, with no pressure.
